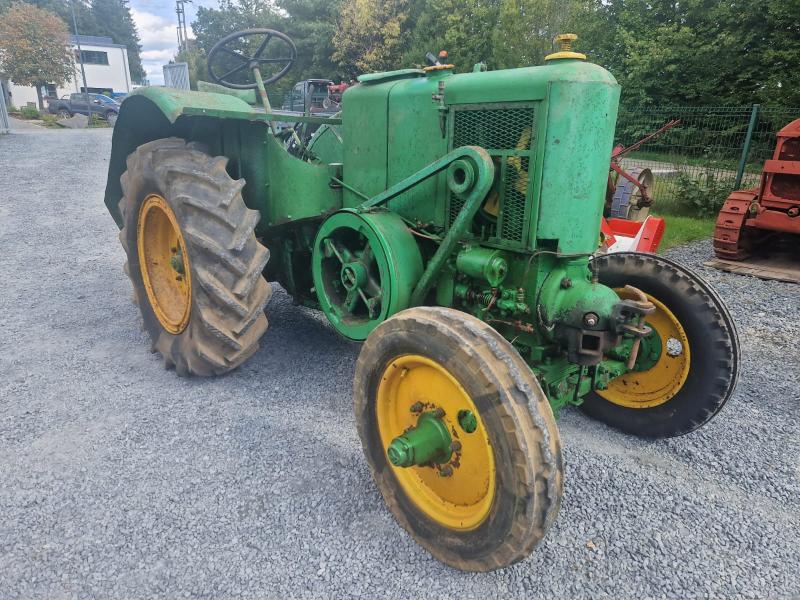

The SFV HV2 is a tractor model rated at approximately 15 horsepower, which positions it at the lower end of its class. It was manufactured from 1940 to 1950 and features a 1-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 5-speed gearbox. The HV2 has an operating weight of 2229 kilograms. It is suited for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
2229 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
15 hp
Recorded weight
2229 kg
Transmissions
5-speed gear
Production years
1940-1950
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSFVReference
Standard-tread tractorReference
Built in Vierzon, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
SFV 5.4L 1-cyl dieselReference
Drawbar (claimed)11.2 kWReference
Belt (claimed)22.4 kWReference
SFVReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke180 x 210 mmReference
Rated RPM800Reference
Coolant capacity40.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Dimensions
Wheelbase162 cmReference
Weight2229 kgReference
Front tire5.50-20Reference
Rear tire10-28Reference
Ag front5.50-20Reference
Ag rear10-28Reference
Length297 cmReference
Width163 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
