Tractor · 2006Unverified

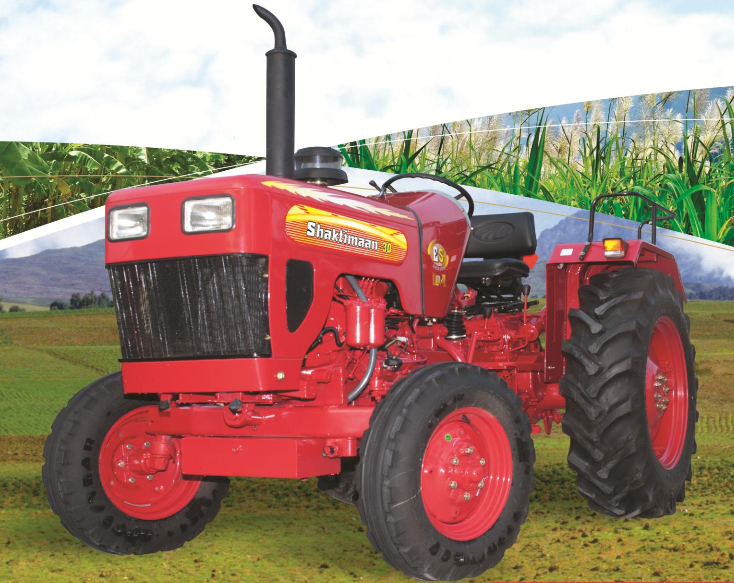

Shaktimaan 30
Shaktimaan 30 · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1744 kg
Hover a source tag to verify
Overview
ManufacturerShaktimaan (a part of Mahindra)Reference
Built in Gujarat, IndiaReference
SteeringmechanicalReference
Dry disc brakesReference
Open operator station.Reference
Engine
1.9L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine22.4 kWReference
MDI 1785Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke89 x 102 mmReference
Power22.4 kWReference
Air cleanerOil bath with cyclonic precleanerReference
Rated RPM2300Reference
Oil capacity5.5 LReference
Coolant capacity5.5 LReference
Transmission
8-speedReference
Transmissionsliding meshReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear lift1000 kgReference
Rear PTO Type627Reference
Dimensions
Wheelbase183 cmReference
Weight1744 kgReference
Front tire6.00x16Reference
Rear tire12.4x28Reference
Ag front6.00x16Reference
Ag rear12.4x28Reference
Length279 cmReference
Width168 cmReference
Height217 cmReference
Ground clearance32 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
