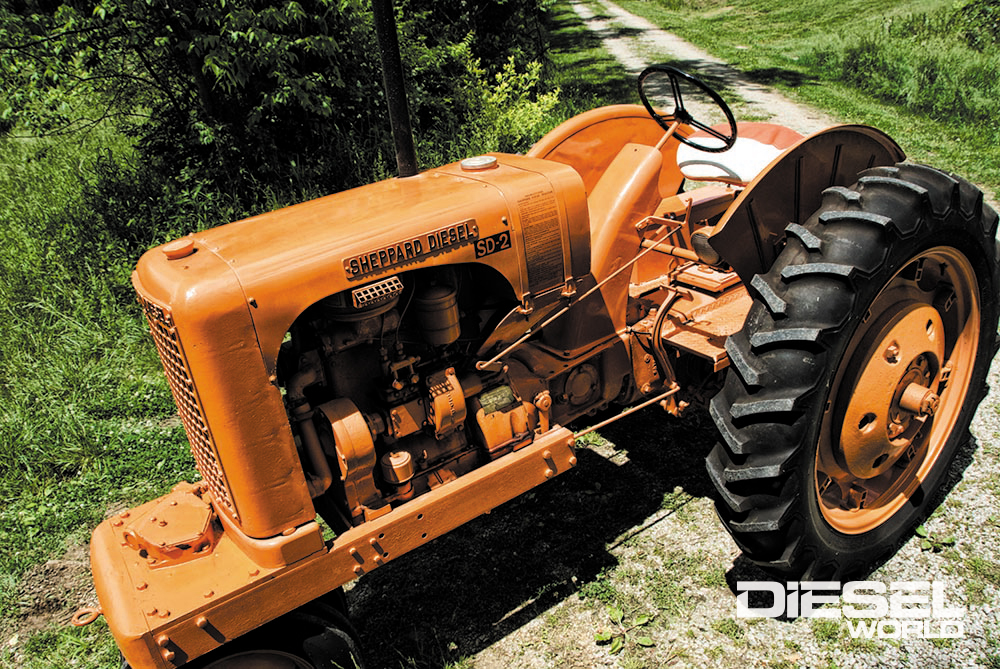

The Sheppard Diesel SDO-2 is a compact tractor with a rating of 24 hp. Manufactured between 1951 and 1956, the SDO-2 is equipped with a 2-cylinder diesel liquid-cooled engine, coupled to an 8-speed gearbox and two-wheel drive. Its listed weight is 2336 kg, with a capacity for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2336 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
24 hp
Recorded weight
2336 kg
Transmissions
8-speed gear
Production years
1951-1956
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSheppard DieselReference
Orchard/Vineyard tractorReference
Built in Hanover, Pennsylvania, USAReference
Two-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
Sheppard Diesel 2.3L 2-cyl dieselReference
Engine17.9 kWReference
Plows2Reference
Sheppard Diesel 13EReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke108 x 127 mmReference
Power17.9 kWReference
Fuel systemindirect injectionReference
Rated RPM1650Reference
Starter typeelectricReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Dimensions
Wheelbase215 cmReference
Weight2336 kgReference
Front tire6.00-16Reference
Rear tire13x26Reference
Ag front6.00-16Reference
Ag rear13x26Reference
Length330 cmReference
SDG-2 Height171 cmReference
SDO-2 Height177 cmReference
Front tread149 cmReference
Rear tread142 cmReference
Capacities
Diameter20 cmReference
Width19 cmReference
RPM1325Reference
Speed888.49 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
