Tractor · 1972Unverified

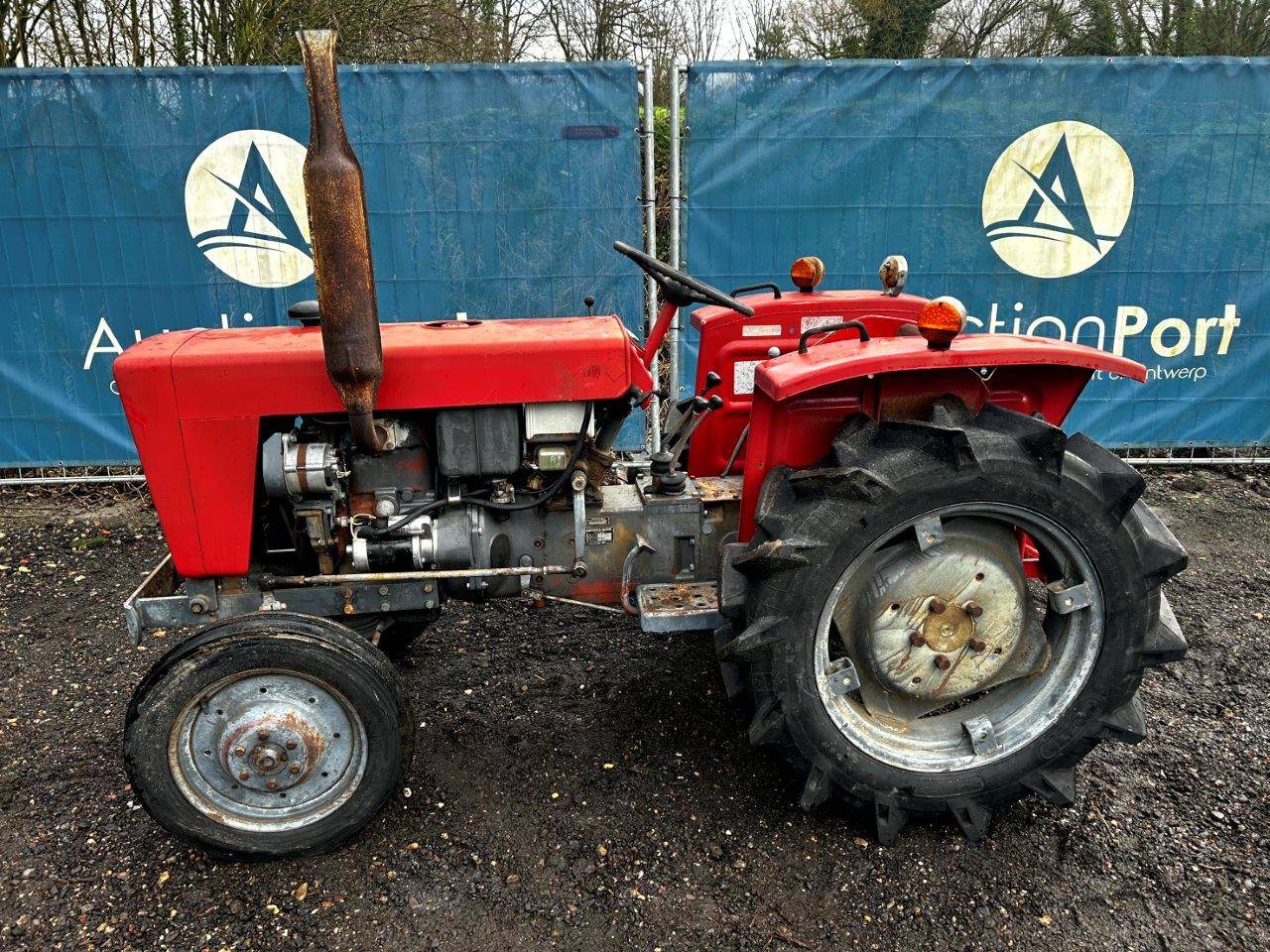

Shibaura S1000
Shibaura S1000 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1984 to 2271 pounds
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
S1000-04WDReference
Engine
Shibaura 1.0L 2-cyl dieselReference
Fuel tank18.2 LReference
Engine15.4 kWReference
Shibaura LE852Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power15.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM1826@540Reference
Engine RPM965@2500Reference
Engine RPM1410@2500Reference
Dimensions
Wheelbase152 cmReference
Weight1984 to 2271 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5/9-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5/9-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9-24Reference
Length243 cmReference
Width128 cmReference
Height (steering wheel)133 cmReference
Height (exhaust)176 cmReference
2WD Weight899 kgReference
4WD Weight1030 kgReference
Ground clearance32 cmReference
Front tread94 cmReference
Rear tread103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
