Tractor · 1972Unverified

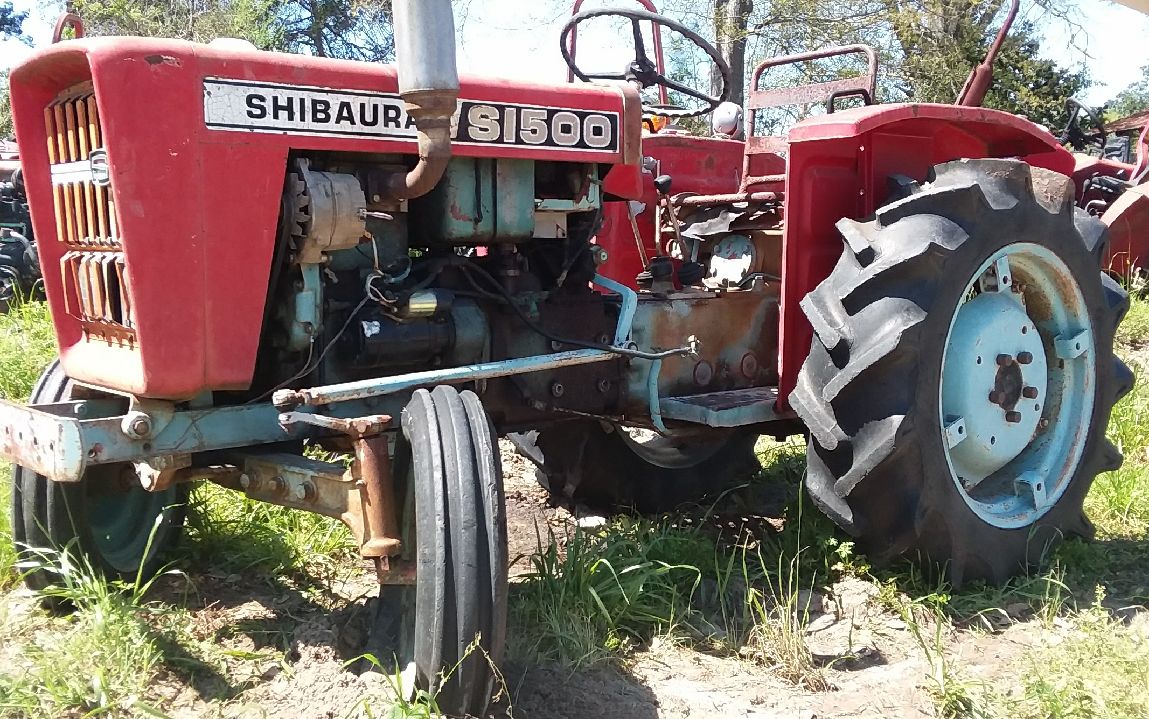

Shibaura S1500
Shibaura S1500 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2293 to 2491 pounds
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
S1500-04WDReference
1000similar Ford modelReference
Engine
Shibaura 1.3L 2-cyl dieselReference
Fuel tank22.0 LReference
Engine18.3 kWReference
Shibaura LE892Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke90 x 100 mmReference
Power18.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1954Reference
Engine RPM988@2500Reference
Engine RPM1380@2500Reference
Dimensions
2WD Wheelbase159 cmReference
4WD Wheelbase167 cmReference
Weight2293 to 2491 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2/10-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2/10-24Reference
4WD Standard tires (ag)Front: 6.00-16. Rear: 10-24Reference
Length256 cmReference
2WD Width139 cmReference
4WD Width140 cmReference
Height (steering wheel)138 cmReference
Height (exhaust)183 cmReference
2WD Weight1040 kgReference
4WD Weight1129 kgReference
Ground clearance35 cmReference
2WD Front tread108 cmReference
4WD Front tread110 cmReference
Rear tread109 cmReference
Rear tread110 to 149 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH70Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
