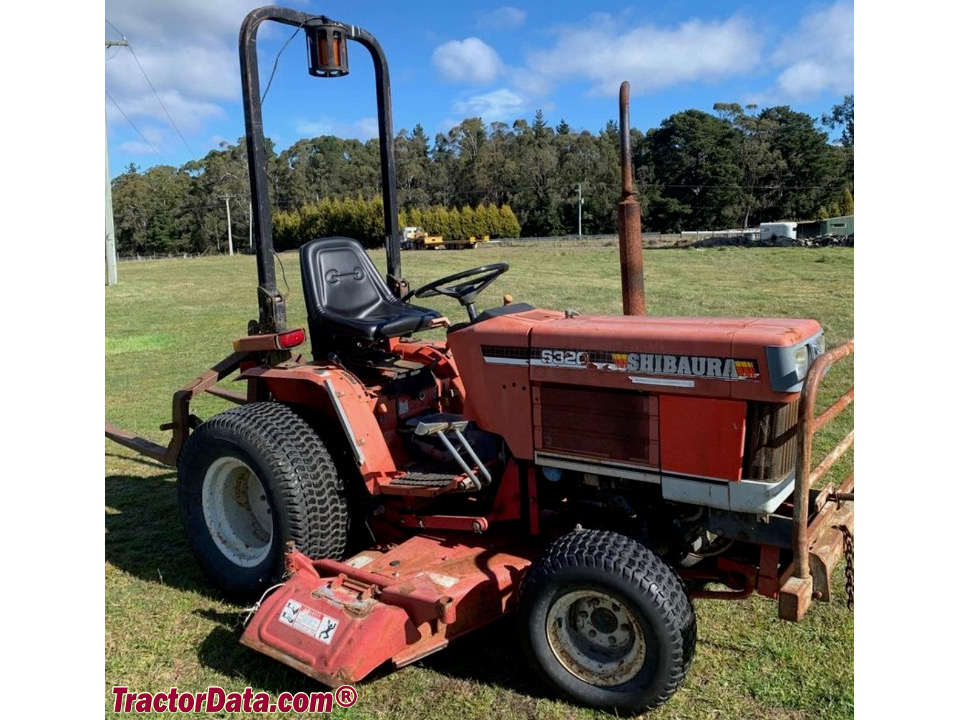

Shibaura S320
Shibaura S320 — S SeriesCompact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1290 to 1378 pounds
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Manual steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Shibaura 1.0L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine14.9 kWReference
Shibaura S753Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Power14.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
hydrostaticReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540Reference
Dimensions
Wheelbase140 cmReference
Weight1290 to 1378 poundsReference
Front tire4.00-12Reference
2WD Rear tire9.5-16Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 9.5-16Reference
4WD Standard tires (ag)Front: 5-12. Rear: 9.5-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length270 cmReference
Width103 cmReference
Height196 cmReference
2WD Weight585 kgReference
4WD Weight625 kgReference
2WD Ground clearance25 cmReference
4WD Ground clearance24 cmReference
2WD Front tread85 cmReference
4WD Front tread82 cmReference
Rear tread85 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
