Tractor · 1989Unverified

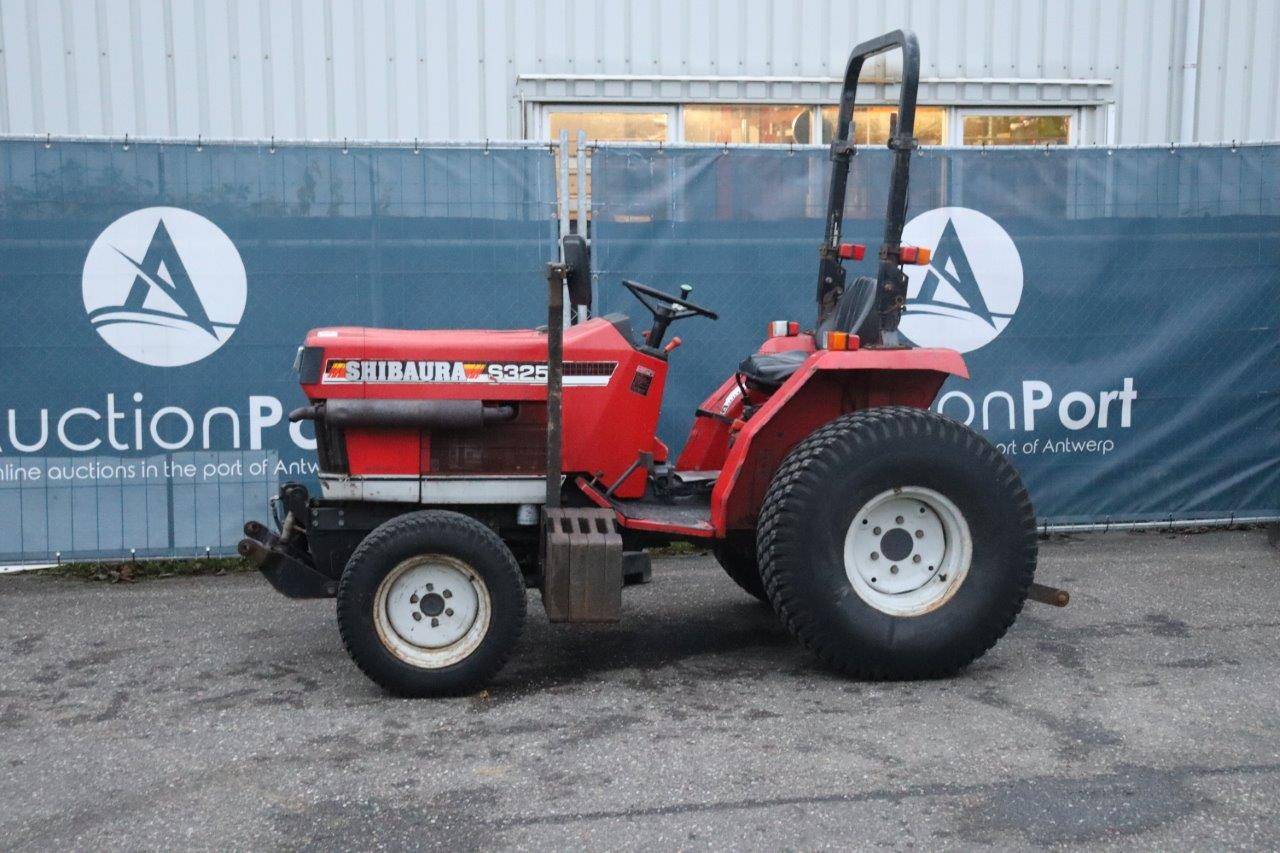

Shibaura S325
Shibaura S325 — S Series · 25 hp. Reference specifications; pending source verification.
The Shibaura S325 is a compact tractor with a rated power output of 25 hp. It was manufactured in 1989 and features a 3-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The listed weight of the S325 ranges from 2116 to 2235 pounds. It is designed for workloads of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2116 to 2235 pounds
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
25 hp
Recorded weight
959 kg
Transmissions
9-speed
Production years
1989-1989
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Shibaura 1.3L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine18.6 kWReference
Shibaura J843Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Power18.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speedReference
hydrostaticReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition control with available draft controlReference
Rear PTO Type540Reference
Dimensions
Wheelbase160 cmReference
Weight2116 to 2235 poundsReference
2WD Lawn/turf front23x8.50-12Reference
4WD Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6x16Reference
Length285 cmReference
Width146 cmReference
Height127 cmReference
2WD Weight959 kgReference
4WD Weight1013 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
