Tractor · Unverified

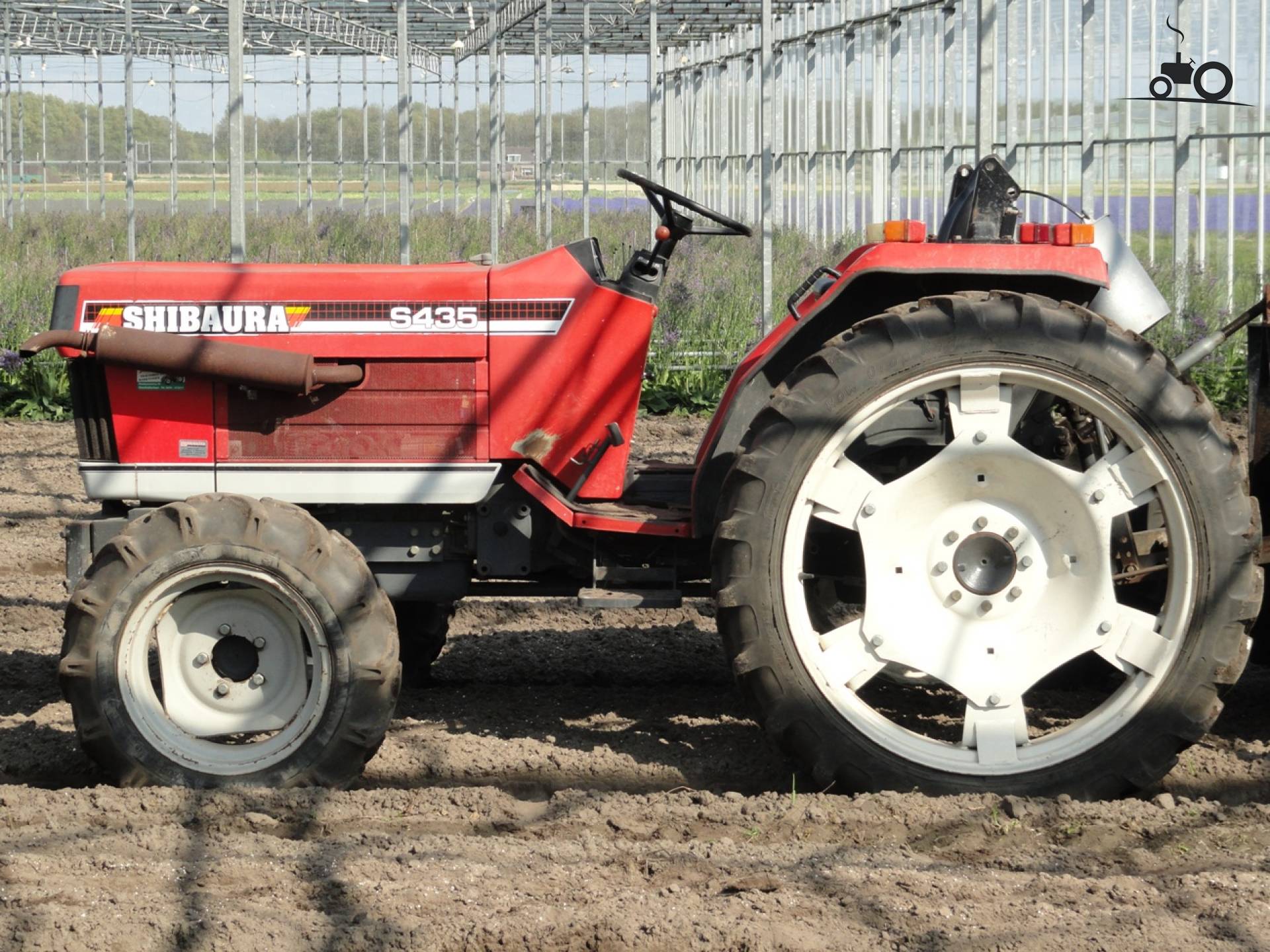

Shibaura S435

Name: Shibaura S435
Brand: Shibaura

Shibaura S435 — S SeriesCompact Utility tractor · 38 hp. Reference specifications; pending source verification.

The Shibaura S435 is a compact tractor rated at 38 hp. It is powered by a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives four-wheel drive through a 12-speed gearbox. The tractor's listed weight ranges from 2800 to 3020 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Weight

2800 to 3020 pounds

Catalogue coverage

Variants represented

Richest spec table

44 rows

Recorded power

38 hp

Recorded weight

1270 kg

Transmissions

12-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerShibauraReference

Compact Utility tractorReference

Built in NetherlandsReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Open operator station.Reference

Engine

Shibaura 2.0L 4-cyl dieselReference

Fuel tank37.1 LReference

Engine28.3 kWReference

Shibaura N844Reference

intercooled turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 90 mmReference

Power28.3 kWReference

StarterelectricReference

Starter volts12Reference

Transmission

12-speedReference

12-speed sync shuttleReference

Gears12 forward and 4 reverseReference

Typesync shuttleReference

Gears12 forward and reverseReference

PTO & Hydraulics

Rear TypeIReference

Controlposition control with available draft controlReference

Rear PTO Type540Reference

Dimensions

Wheelbase177 cmReference

Weight2800 to 3020 poundsReference

Front tire7.5L-15Reference

2WD Rear tire14.9-24Reference

2WD Standard tires (ag)Front: 7.5L-15. Rear: 14.9-24Reference

4WD Standard tires (ag)Front: 8-16. Rear: 14.9-24Reference

Length321 cmReference

Width162 cmReference

Height209 cmReference

2WD Weight1270 kgReference

4WD Weight1369 kgReference

Ground clearance32 cmReference

2WD Front tread109 cmReference

4WD Front tread115 cmReference

Rear tread127 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
