Tractor · Unverified

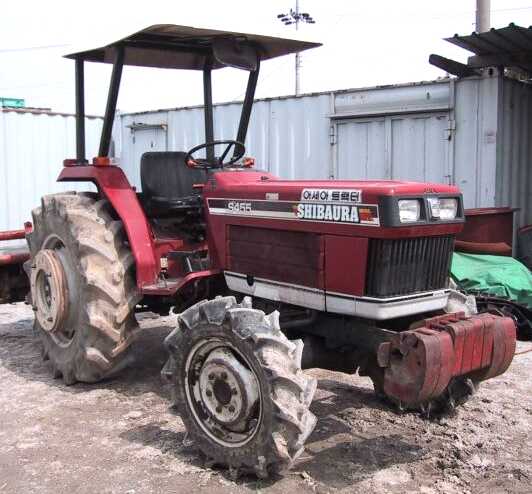

Shibaura S445
Shibaura S445 — S SeriesCompact Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3516 to 3803 pounds
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Engine
Shibaura 2.3L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine33.6 kWReference
Shibaura T854BReference
intercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power33.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speedReference
12-speed hydraulic shuttleReference
Gears12 forward and 4 reverseReference
Typehydraulic shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Controlposition and draft controlReference
Rear PTO Type540Reference
Dimensions
Wheelbase189 cmReference
Weight3516 to 3803 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference
Length348 cmReference
Width168 cmReference
Height211 cmReference
2WD Weight1594 kgReference
4WD Weight1725 kgReference
2WD Ground clearance37 cmReference
4WD Ground clearance35 cmReference
2WD Front tread121 cmReference
4WD Front tread125 cmReference
Rear tread133 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
