Tractor · 1972Unverified

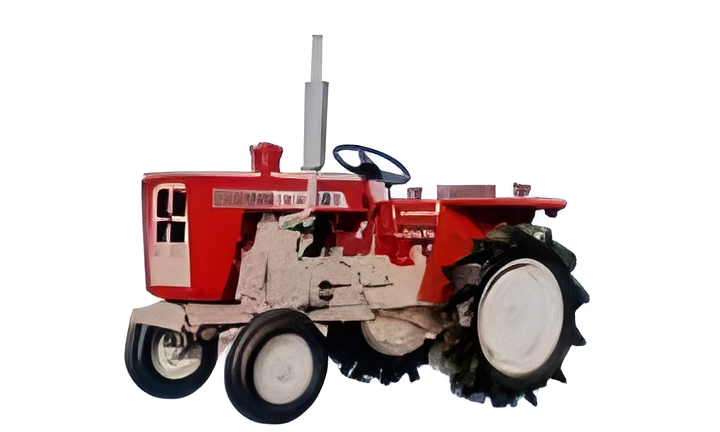

Shibaura S700
Shibaura S700 — Compact Utility tractor · 15 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
15 hp
Weight
760 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
S700-04WDReference
Engine
Shibaura 0.7L 2-cyl dieselReference
Fuel tank15.1 LReference
Engine11.0 kWReference
Shibaura LE752Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke75 x 80 mmReference
Power11.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight760 kgReference
Front tire5-14Reference
4WD Rear tire8-20Reference
4WD Standard tires (ag)Front: 5-14. Rear: 8-20Reference
4WD Weight760 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
