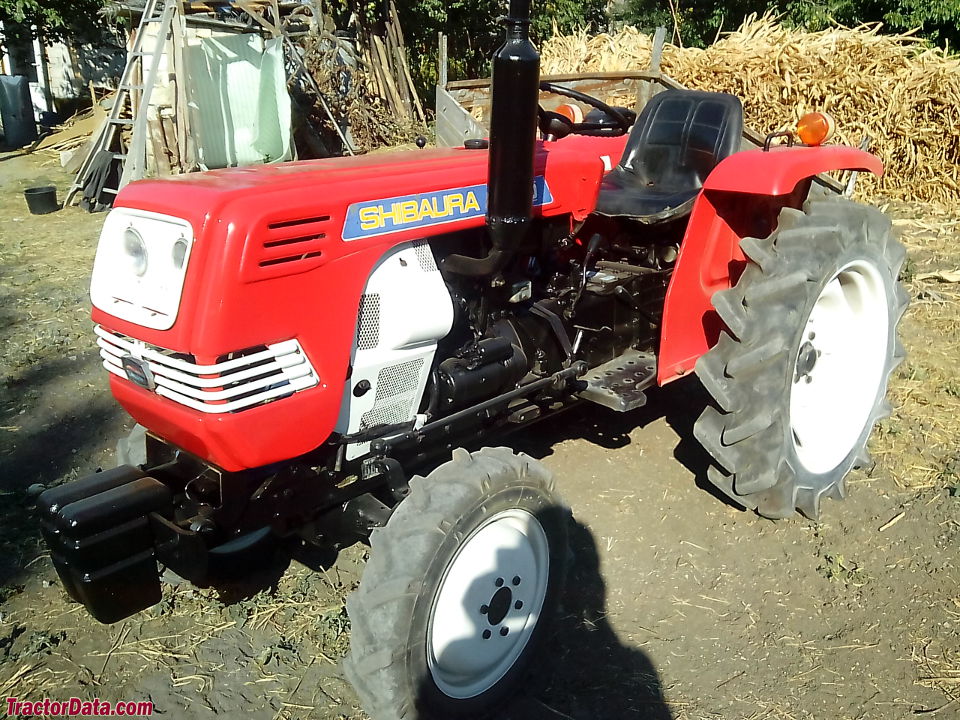

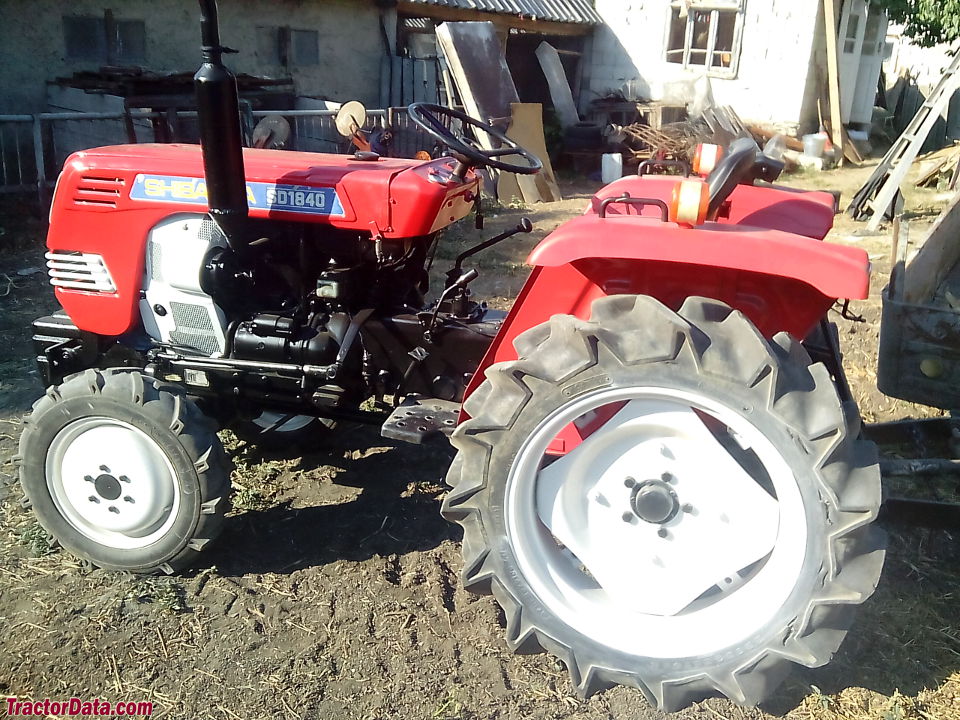

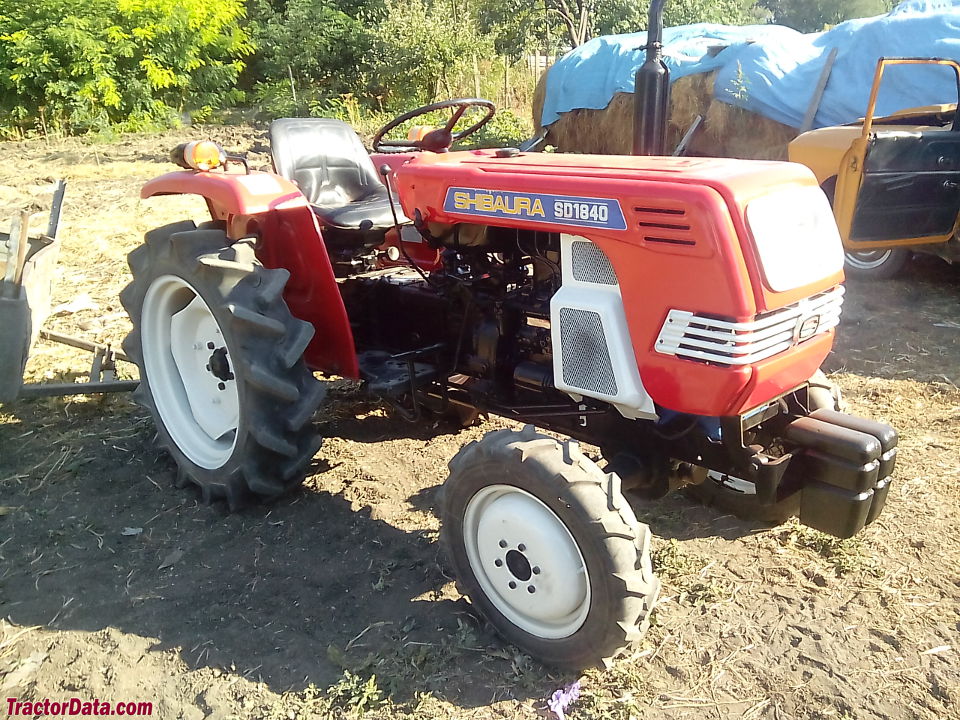

The Shibaura SD1840 is a tractor model with a rated power of 18 hp, positioning it at the lighter end of its class. Built from 1977 to 1980, this model features a 2-cylinder diesel liquid-cooled engine paired with four-wheel drive. The operating weight of the Shibaura SD1840 is listed as 933 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
933 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
18 hp
Recorded weight
933 kg
Production years
1977-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Open operator station.Reference
Engine
Shibaura 0.8L 2-cyl dieselReference
Engine13.3 kWReference
Shibaura LET802CReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke80 x 80 mmReference
Power13.3 kWReference
Rated RPM2500Reference
Starter volts12Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Weight933 kgReference
Front tire5.00-12Reference
Rear tire8.3-20Reference
Ag front5.00-12Reference
Ag rear8.3-20Reference
Length241 cmReference
Width116 cmReference
Height180 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
