Tractor · 1979Unverified

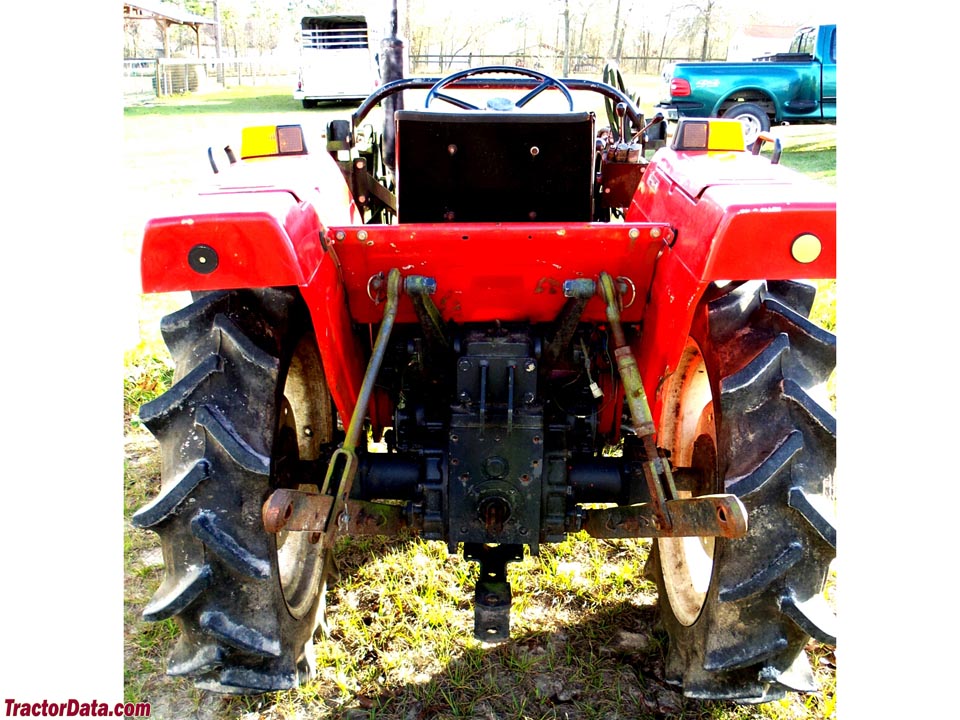

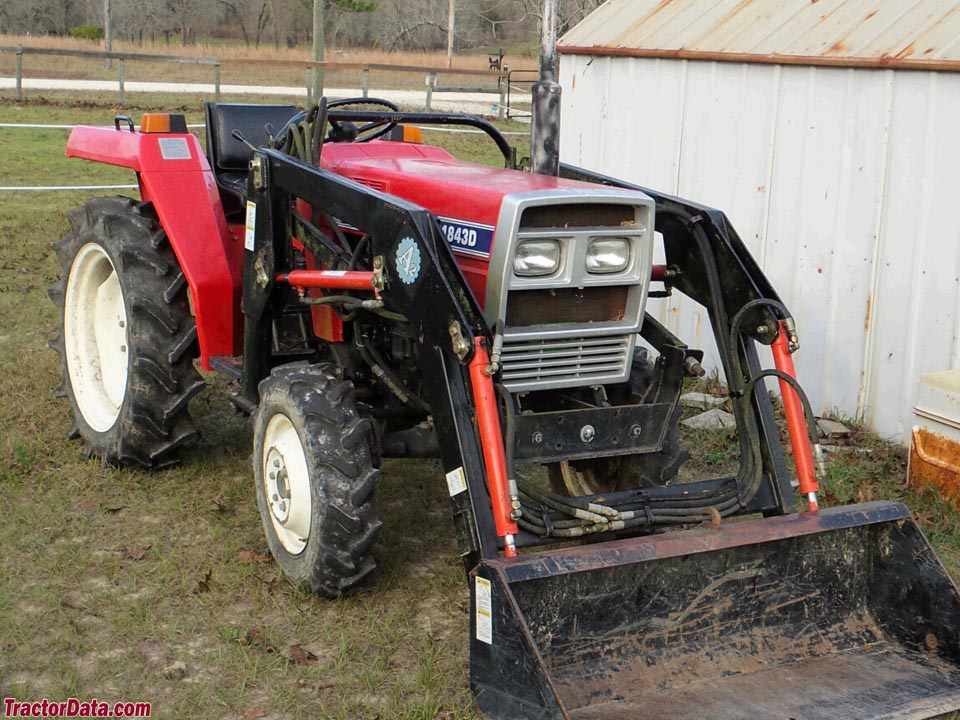

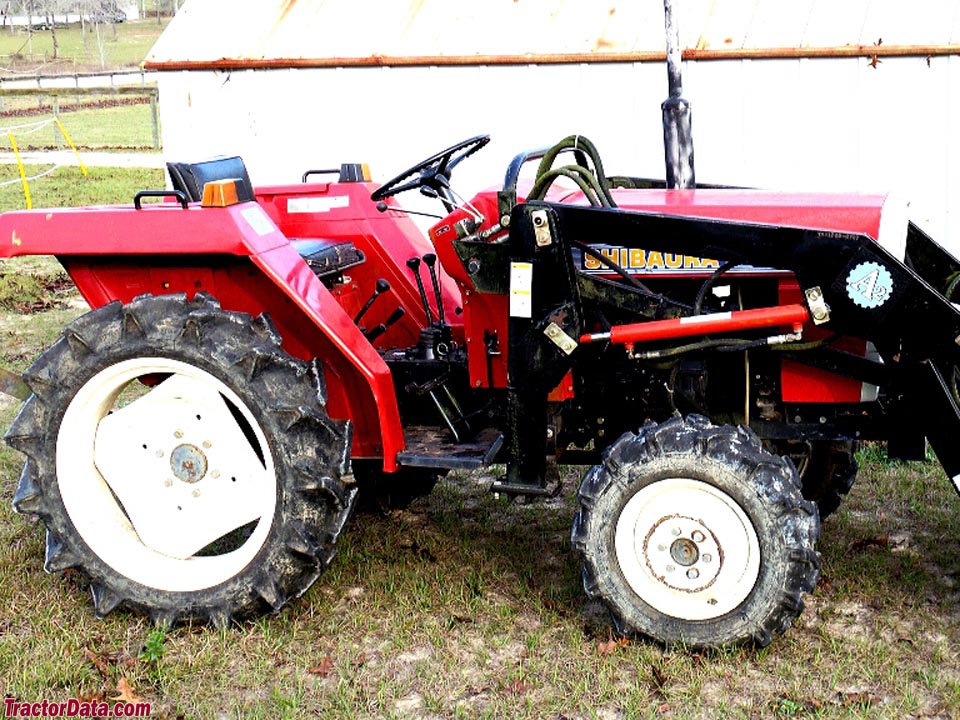

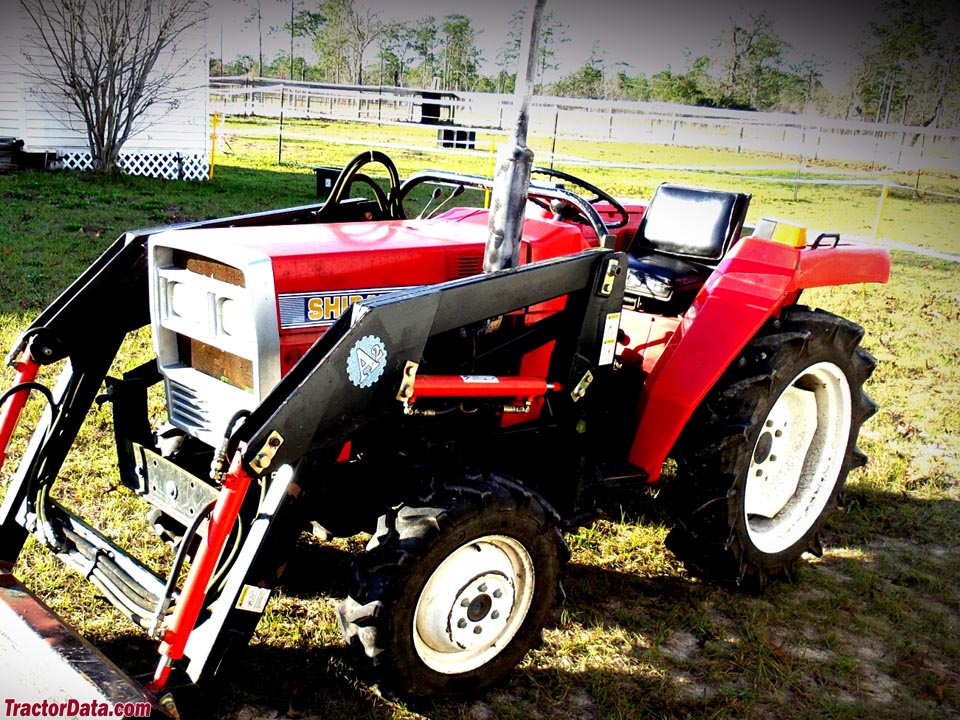

Shibaura SD1843

Name: Shibaura SD1843
Brand: Shibaura

Shibaura SD1843 — SD3 Series · 18 hp. Reference specifications; pending source verification.

The Shibaura SD1843 is a tractor with a rated output of 18 hp — making it one of the more compact options in its class. The SD1843 was produced from 1979 to 1984. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive. Listed weight is 1108 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Weight

1108 kg

Catalogue coverage

Variants represented

Richest spec table

22 rows

Recorded power

18 hp

Recorded weight

1108 kg

Production years

1979-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerShibauraReference

Compact Utility tractorReference

Built in Matsumoto, JapanReference

Four-wheel driveReference

Open operator station.Reference

Variants

SD18032WDReference

SD18434WDReference

Engine

Shibaura 3-cyl dieselReference

Engine13.4 kWReference

Shibaura H763Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Power13.4 kWReference

Rated RPM2600Reference

Starter volts12Reference

Dimensions

Weight1108 kgReference

Length281 cmReference

Width121 cmReference

Height180 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
