Tractor · 1979Unverified

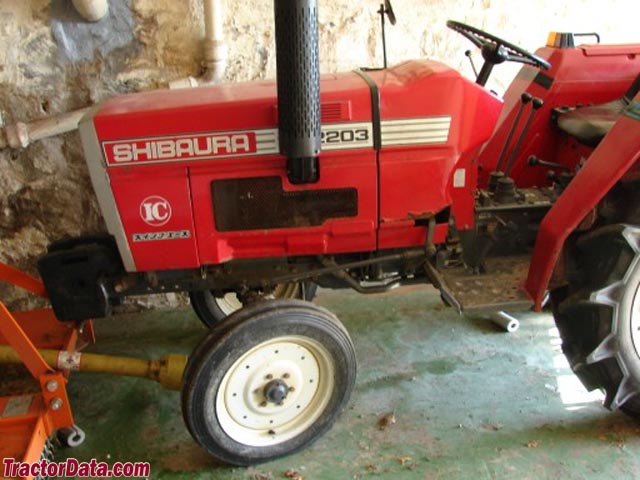

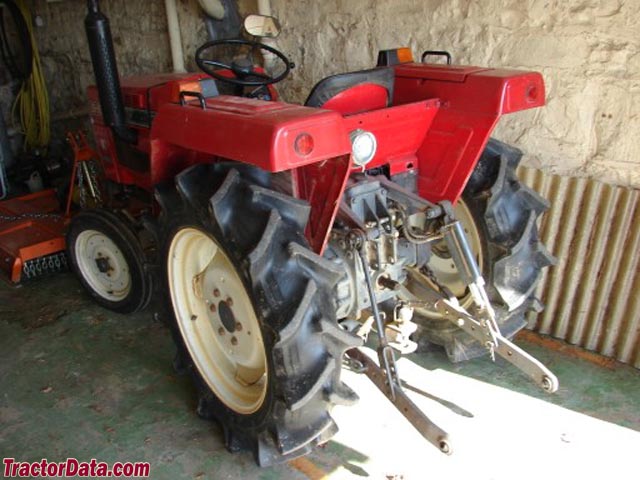

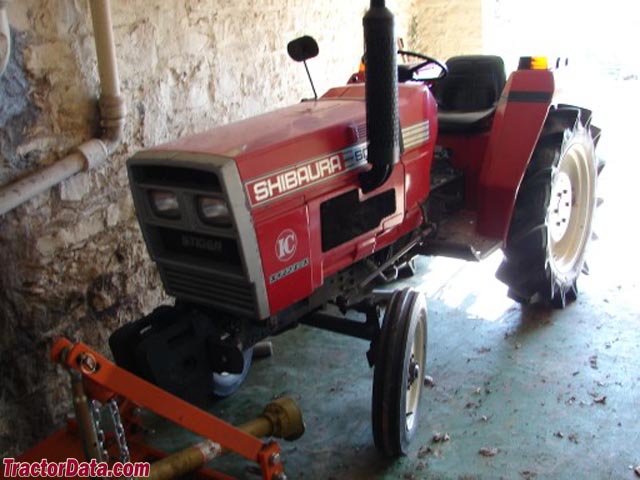

Shibaura SD2203

Name: Shibaura SD2203
Brand: Shibaura

Shibaura SD2203 — SD3 Series · 22 hp. Reference specifications; pending source verification.

The Shibaura SD2203 is a compact tractor model with a rating of 22 hp, falling into the lower end of its class in terms of power output. Manufactured from 1979 to 1984, the SD2203 is powered by a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a 24-speed gearbox. The listed weight of the tractor is 1037 kg, with an operating capacity of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

1037 kg

Catalogue coverage

Variants represented

Richest spec table

27 rows

Recorded power

22 hp

Recorded weight

1037 kg

Transmissions

24-speed

Production years

1979-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerShibauraReference

Compact Utility tractorReference

Built in Matsumoto, JapanReference

Two-wheel driveReference

Open operator station.Reference

Variants

SD22032WDReference

SD22434WDReference

Engine

Shibaura 1.4L 3-cyl dieselReference

Engine16.4 kWReference

Shibaura H843Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke84 x 84 mmReference

Power16.4 kWReference

Starter volts12Reference

Transmission

24-speedReference

Gears24 forward and 8 reverseReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540Reference

Dimensions

Weight1037 kgReference

Length287 cmReference

Width124 cmReference

Height182 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
