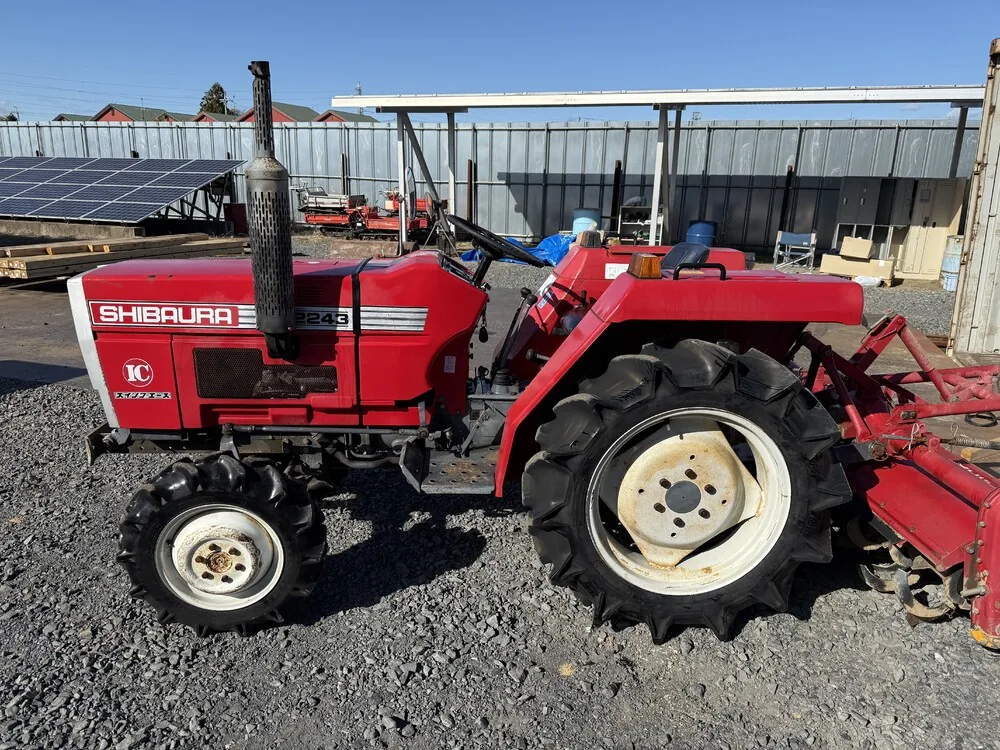

The Shibaura SD2243 is a compact tractor with a rating of 22 hp, one of the smaller models in its class. Manufactured from 1979 to 1984, it features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system with a 24-speed gearbox. The tractor's weight is listed at 1142 kg, and it is suited for applications of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1142 kg
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
22 hp
Recorded weight
1142 kg
Transmissions
24-speed
Production years
1979-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Variants
SD22032WDReference
SD22434WDReference
Engine
Shibaura 1.4L 3-cyl dieselReference
Engine16.4 kWReference
Shibaura H843Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 84 mmReference
Power16.4 kWReference
Transmission
24-speedReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
TypeliveReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Dimensions
Weight1142 kgReference
Length287 cmReference
Width124 cmReference
Height180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
