Tractor · 1977Unverified

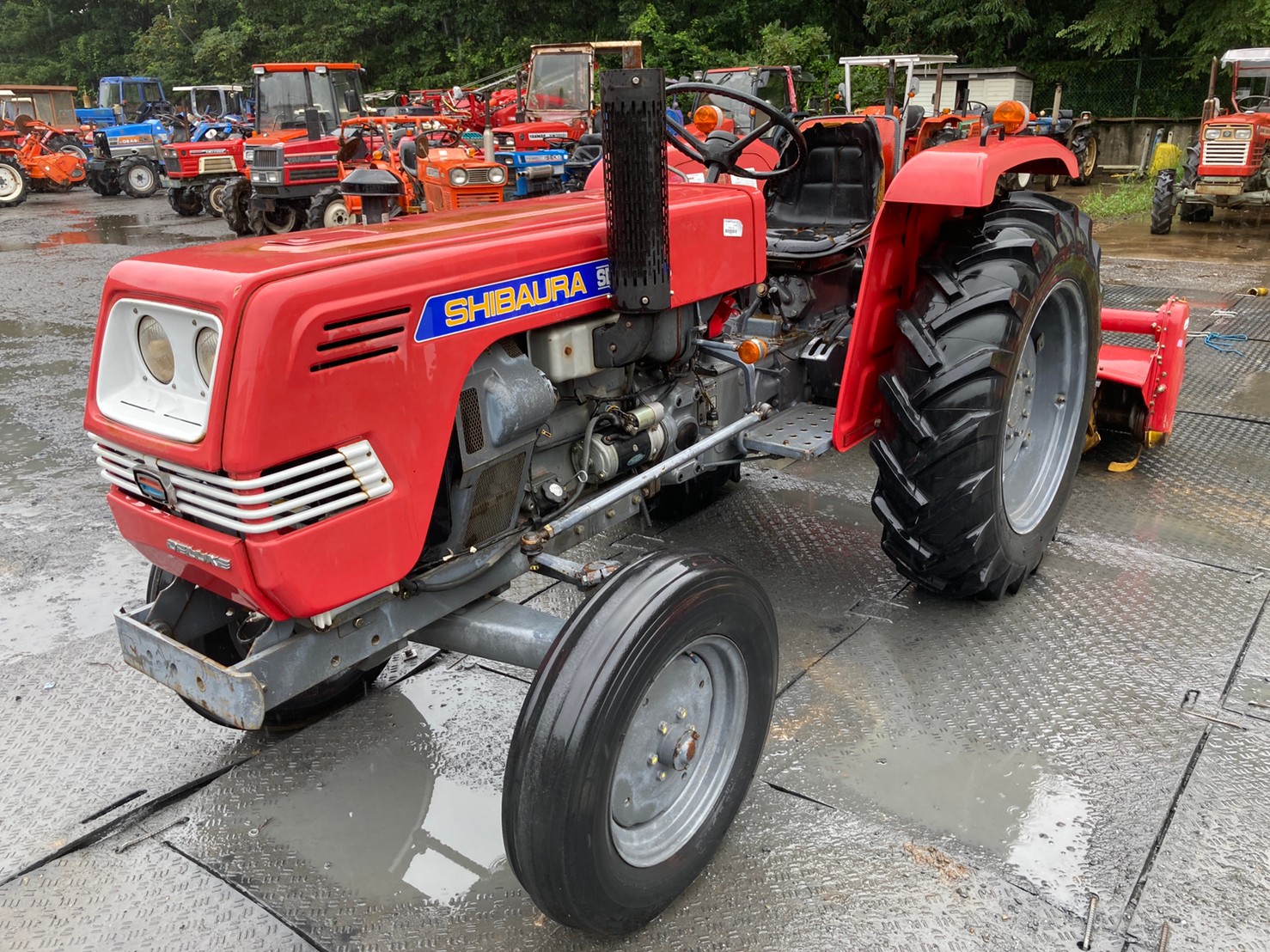

Shibaura SD3000

Name: Shibaura SD3000
Brand: Shibaura

Shibaura SD3000 — SD 0 Series · 30 hp. Reference specifications; pending source verification.

The Shibaura SD3000 is a compact tractor rated at 30 hp, featuring a 4-cylinder diesel liquid-cooled engine. Manufactured from 1977 to 1980, it is equipped with a 24-speed gearbox and four-wheel drive. The listed operating weight ranges from 3131 to 3395 pounds. It is suitable for tasks covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

3131 to 3395 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

30 hp

Recorded weight

1420 kg

Transmissions

12-speed gear

Production years

1977-1980

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerShibauraReference

Utility tractorReference

Built in Matsumoto, JapanReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

SD3000AD2WD 24-speedReference

SD3000AD-04WD 24-speedReference

SD3000A2WD 12-speedReference

SD3000A-04WD 12-speedReference

Engine

Shibaura 1.5L 4-cyl dieselReference

Fuel tank29.9 LReference

Engine22.4 kWReference

Shibaura LEM754AReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power22.4 kWReference

Rated RPM2700Reference

Starter volts12Reference

Transmission

12-speed gearReference

24-speed creeperReference

TypegearReference

Gears12 forward and 4 reverseReference

Three gears, plus reverse, in four ranges.Reference

TypecreeperReference

Gears24 forward and 8 reverseReference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM590@2700Reference

Engine RPM757@2700Reference

Engine RPM1125@2700Reference

Engine RPM1426@2700Reference

Dimensions

2WD Wheelbase175 cmReference

4WD Wheelbase182 cmReference

Weight3131 to 3395 poundsReference

Front tire6.00-16Reference

2WD Rear tire12.4/11-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4/11-28Reference

4WD Standard tires (ag)Front: 8-16. Rear: 12.4/11-28Reference

Length323 cmReference

Width151 cmReference

2WD Weight1420 kgReference

4WD Weight1539 kgReference

2WD Ground clearance39 cmReference

4WD Ground clearance36 cmReference

2WD Front tread113 cmReference

4WD Front tread118 cmReference

4WD Rear tread119 to 150 cmReference

2WD Steering wheel151 cmReference

4WD Steering wheel151 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Shibaura SD3000 Height

2WD Exhaust188 cmReference

4WD Exhaust191 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
