Tractor · 1980Unverified

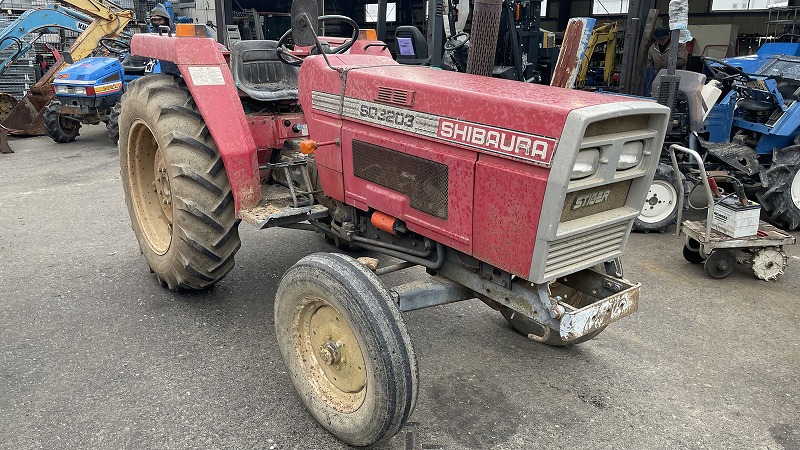

Shibaura SD3203
Shibaura SD3203 — SD 3 Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1619 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Two-wheel driveReference
Open operator station.Reference
Engine
Shibaura 1.5L 4-cyl dieselReference
Engine23.9 kWReference
Shibaura LEM754AReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke75 x 94 mmReference
Power23.9 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
24-speed creeperReference
TypegearReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1619 kgReference
Front tire6.00-16Reference
Rear tire12.4/11-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 12.4/11-28Reference
Length332 cmReference
Width152 cmReference
Height193 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
