Tractor · 1980Unverified

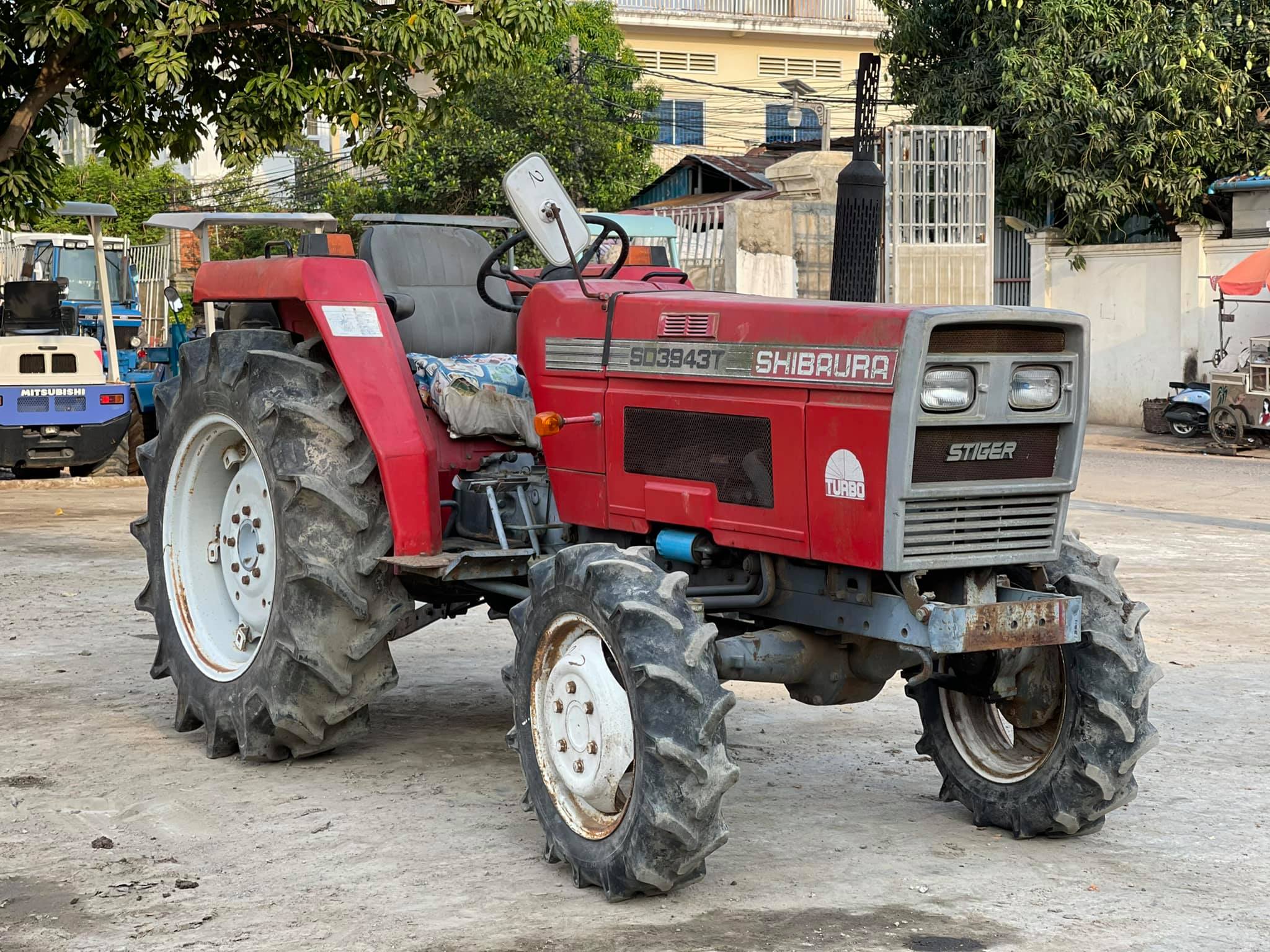

Shibaura SD3943
Shibaura SD3943 — SD 3 Series · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1839 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Open operator station.Reference
Engine
Shibaura 1.5L 4-cyl dieselReference
Engine29.1 kWReference
Shibaura LEM754ATReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Power29.1 kWReference
Rated RPM2750Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
24-speed creeperReference
TypegearReference
Gears12 forward and 4 reverseReference
TypecreeperReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1839 kgReference
Front tire8-18Reference
Rear tire12.4/11-28Reference
Standard tires (ag)Front: 8-18. Rear: 12.4/11-28Reference
Length335 cmReference
Width152 cmReference
Height198 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
