Tractor · 1977Unverified

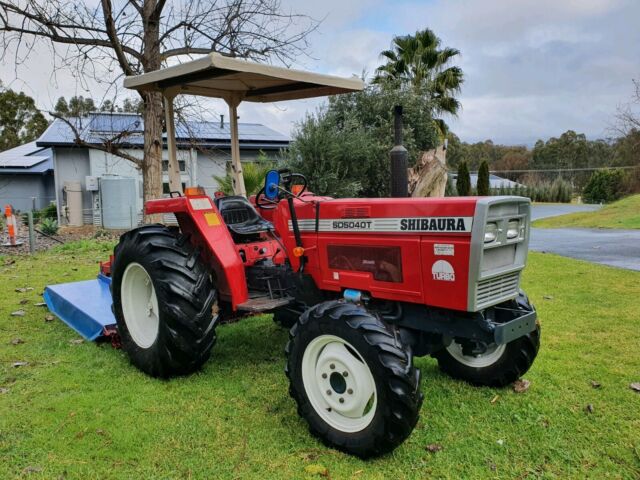

Shibaura SD5040T
Shibaura SD5040T — SD Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1680 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringpowerReference
Mechanical drum brakesReference
Open operator station. Available two-post ROPS and canopy.Reference
Variants
SD5000T2WDReference
SD5040T4WDReference
Engine
Shibaura 2.1L 4-cyl dieselReference
Engine37.3 kWReference
Shibaura LEP854AReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke85 x 94 mmReference
Power37.3 kWReference
Compression22:1Reference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Starter power2.1 kWReference
Transmission
24-speed gearReference
TypegearReference
Gears24 forward and 8 reverseReference
Clutchdry discReference
Oil capacity35.0 LReference
Three gears, plus reverse, in four ranges. Tractor must be stopped, and clutch used, to shift gears and range. Additional creeper range doubles the number of available speeds.Reference
PTO & Hydraulics
PTO (claimed)33.5 kWReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity34.8 LReference
Valves1 or 2Reference
Pump flow26.9 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)1969 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM557@2400Reference
Engine RPM714@2400Reference
Engine RPM1148@2400Reference
Engine RPM1345@2400Reference
Capacities
Fuel34.8 LReference
Dimensions
Wheelbase187 cmReference
Weight1680 kgReference
Front tire8.00x18Reference
Rear tire12.4/11-28Reference
Ag front8.00x18Reference
Ag rear12.4/11-28Reference
Ag rear14.9x24Reference
Length337 cmReference
Width151 cmReference
Height (steering wheel)151 cmReference
Ground clearance39 cmReference
Front tread119 cmReference
Rear tread119 to 150 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 12.4/11-28 rear tires. Creeper speeds are 13% of standard speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
