Tractor · Unverified

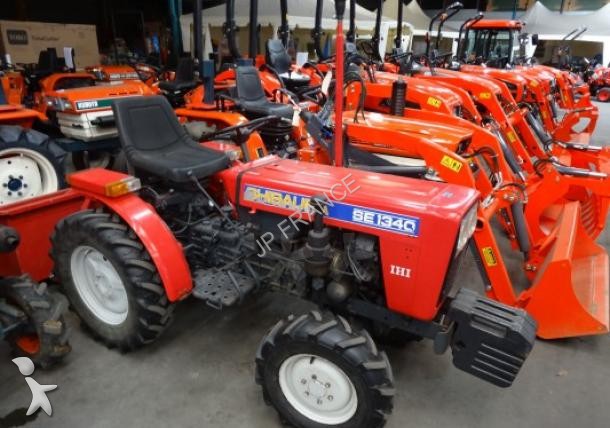

Shibaura SE1340

Name: Shibaura SE1340
Brand: Shibaura

Shibaura SE1340 — Compact Utility tractor · 11 hp. Reference specifications; pending source verification.

The Shibaura SE1340 is a tractor model rated at approximately 11 hp, positioning it at the lower end of its class in terms of power output. It is equipped with a 2-cylinder diesel liquid-cooled engine and a 4-wheel drive system, paired with a 10-speed gearbox. The tractor's operating weight is 508 kg. It is suitable for operations covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

11 hp

Weight

508 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

11 hp

Recorded weight

508 kg

Transmissions

10-speed gear

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerShibauraReference

Compact Utility tractorReference

Four-wheel driveReference

Open operator station.Reference

Variants

SE13002WDReference

SE13404WDReference

Engine

Shibaura 0.7L 2-cyl dieselReference

Fuel tank14.0 LReference

Engine9.7 kWReference

Shibaura LEK 752CReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke75 x 80 mmReference

Power9.7 kWReference

Compression23.1:1Reference

Rated RPM2600Reference

Torque39.3 NmReference

Torque RPM1800Reference

StarterelectricReference

Starter volts12Reference

Transmission

10-speed gearReference

TypegearReference

Gears10 forward and 2 reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (claimed)8.2 kWReference

Type5.3Reference

Pump flow10.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)580 kgReference

Rear PTO Type540 (1.375)Reference

Engine RPM539@2500Reference

Engine RPM805@2500Reference

Engine RPM1258@2500Reference

Dimensions

Weight508 kgReference

Front tire5.00x12Reference

Rear tire7.00x16Reference

Ag front5.00x12Reference

Ag rear7.00x16Reference

Length241 cmReference

Width106 cmReference

Height (steering wheel)124 cmReference

Max weight1305 kgReference

Front tread88 cmReference

Rear tread89 to 116 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
