Tractor · Unverified

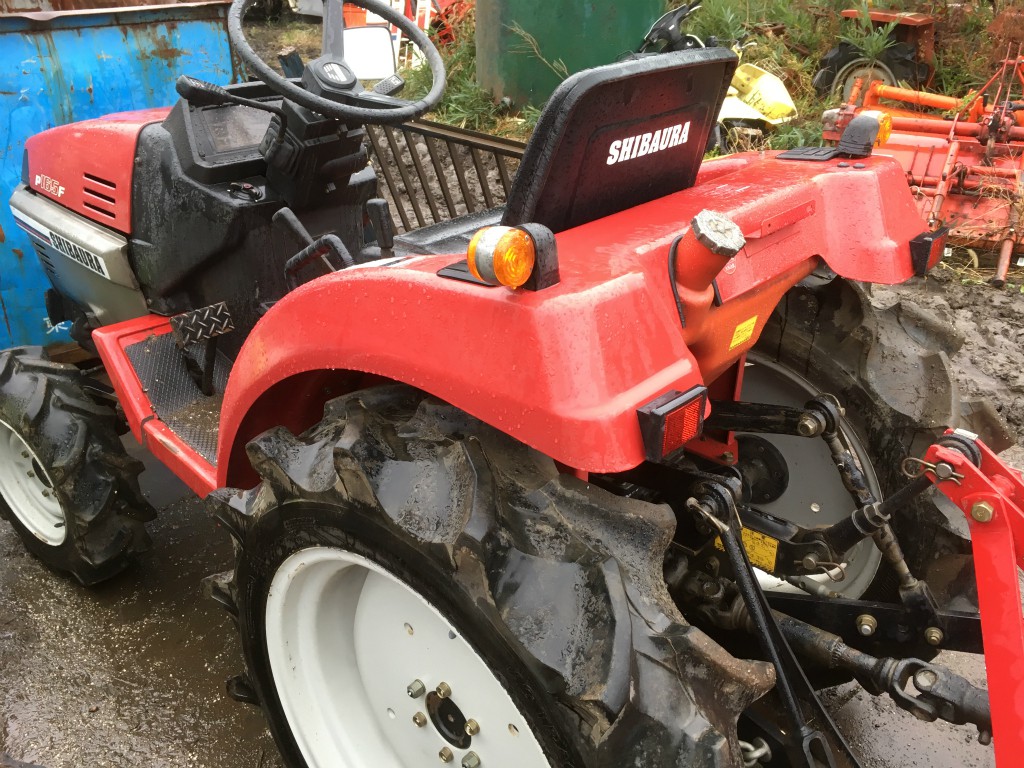

Shibaura SE1600
Shibaura SE1600 — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
805 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Two-wheel driveReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
SE16002WDReference
SE16404WDReference
Engine
Shibaura 0.8L 2-cyl dieselReference
Engine11.9 kWReference
Shibaura LEK 802DReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.8 LReference
Bore/Stroke80 x 80 mmReference
Power11.9 kWReference
Compression23.1:1Reference
Rated RPM2700Reference
Torque44.6 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)10.1 kWReference
Hydraulic system20.1 LReference
Typeopen centerReference
Capacity20.1 LReference
Pressure147.1 barReference
Valves1Reference
Pump flow16.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540 (1.375)Reference
Engine RPM566@2700Reference
Engine RPM719@2700Reference
Engine RPM929@2700Reference
Engine RPM1411@2700Reference
Capacities
Fuel22.0 LReference
Dimensions
Weight805 kgReference
Front tire4.00x12Reference
Rear tire8.3x24Reference
Ag front4.00x12Reference
Ag rear8.3x24Reference
Length268 cmReference
Width127 cmReference
Height (steering wheel)135 cmReference
Max weight2004 kgReference
Front tread98 to 124 cmReference
Rear tread104 to 132 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
With 8.3x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
