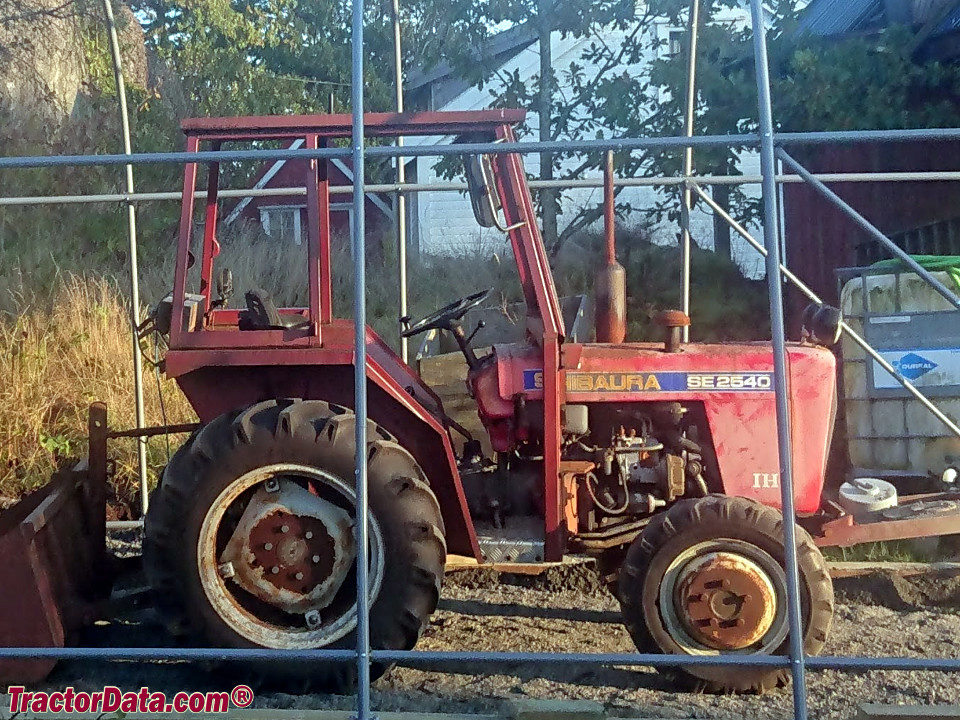

Shibaura SE2540
Shibaura SE2540 — SE SeriesCompact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1055 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station. Two-post ROPS available.Reference
Variants
SE25002WDReference
SE25404WDReference
Engine
Shibaura 1.3L 2-cyl dieselReference
Engine18.6 kWReference
Drawbar (claimed)11.8 kWReference
Shibaura LET 892Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke90 x 100 mmReference
Power18.6 kWReference
Air cleaneroil bathReference
Compression21:1Reference
Rated RPM2500Reference
Operating RPM1250-2500Reference
Torque75.0 NmReference
Torque RPM2000Reference
Starter volts12Reference
Oil capacity5.0 LReference
Coolant capacity5.3 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch316mm dry discReference
Oil capacity22.0 LReference
Three gears, plus reverse, in four ranges.Reference
PTO & Hydraulics
PTO (claimed)16.2 kWReference
Hydraulic system22.0 LReference
Typeopen centerReference
Capacity22.0 LReference
Pressure147.1 barReference
Valves1Reference
Pump flow20.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1099 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM525@2500Reference
Engine RPM674@2500Reference
Engine RPM856@2500Reference
Engine RPM1330@2500Reference
Capacities
Fuel22.0 LReference
Dimensions
Wheelbase152 cmReference
Weight1055 kgReference
Front tire6.00-16Reference
Rear tire11.2-24Reference
Ag front6.00-16Reference
Ag rear11.2-24Reference
Length282 cmReference
Width150 cmReference
Height (steering wheel)141 cmReference
Height (hood)119 cmReference
Max weight2600 kgReference
Ground clearance32 cmReference
Front tread113 cmReference
Rear tread109 to 144 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery volts12Reference
Speeds
With 11.2-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
