Tractor · Unverified

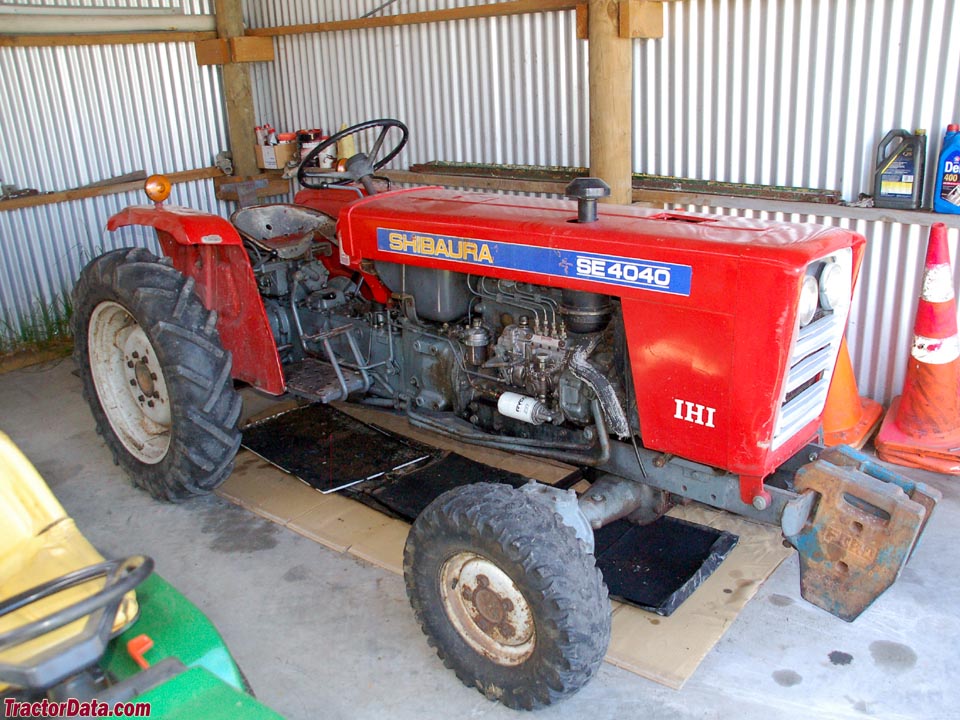

Shibaura SE4040

Name: Shibaura SE4040
Brand: Shibaura

Shibaura SE4040 — Compact Utility tractor · 36 hp. Reference specifications; pending source verification.

The Shibaura SE4040 is a tractor model with a rated output of 36 hp — making it one of the more compact options in its class. Under the hood is a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 12-speed gearbox. Listed weight is 1394 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Weight

1394 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

36 hp

Recorded weight

1394 kg

Transmissions

12-speed gear

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerShibauraReference

Compact Utility tractorReference

Four-wheel driveReference

Mechanical drum brakesReference

Open operator station. ROPS available.Reference

Variants

SE40002WDReference

SE40404WDReference

Engine

Shibaura 2.1L 4-cyl dieselReference

Engine29.8 kWReference

Drawbar (claimed)24.5 kWReference

Shibaura LEP854AReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.1 LReference

Bore/Stroke85 x 94 mmReference

Power29.8 kWReference

Compression22.1:1Reference

Rated RPM2500Reference

Torque121.6 NmReference

Torque RPM2000Reference

Starter volts12Reference

Transmission

12-speed gearReference

TypegearReference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)26.8 kWReference

Hydraulic system35.0 LReference

Typeopen centerReference

Capacity35.0 LReference

Pressure147.1 barReference

Valves1Reference

Pump flow20.1 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1144 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM546@2500Reference

Engine RPM701@2500Reference

Engine RPM1042@2500Reference

Engine RPM1329@2500Reference

Capacities

Fuel35.0 LReference

Dimensions

Weight1394 kgReference

Front tire8.00x18Reference

Rear tire12.4x28Reference

Ag front8.00x18Reference

Ag rear12.4x28Reference

Length334 cmReference

Width151 cmReference

Height (steering wheel)156 cmReference

Ground clearance38 cmReference

Front tread119 cmReference

Rear tread119 to 150 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
