Tractor · Unverified

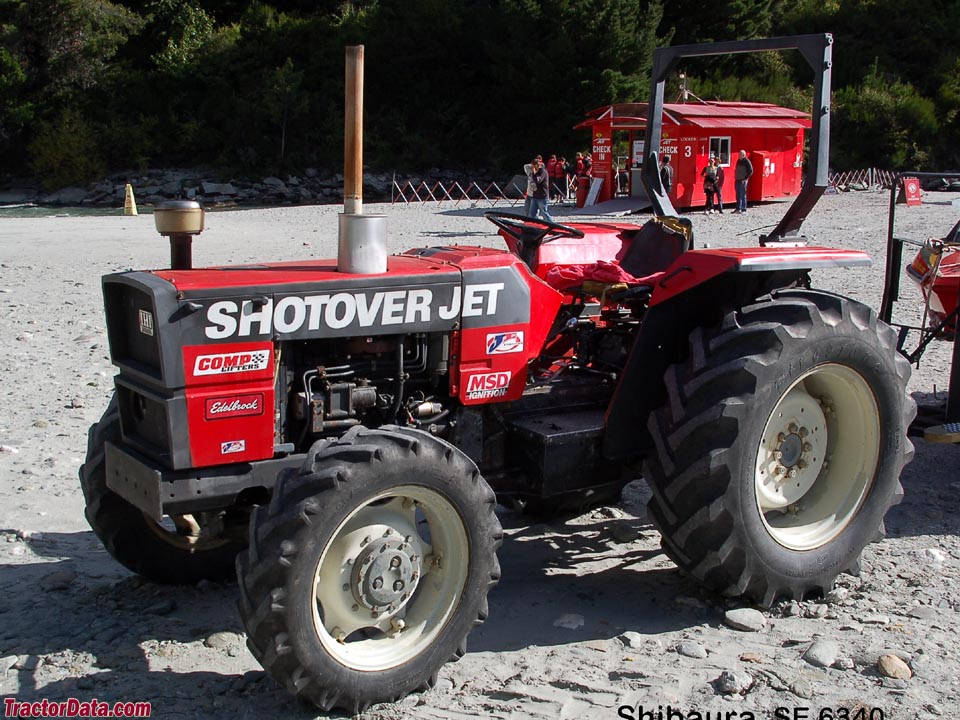

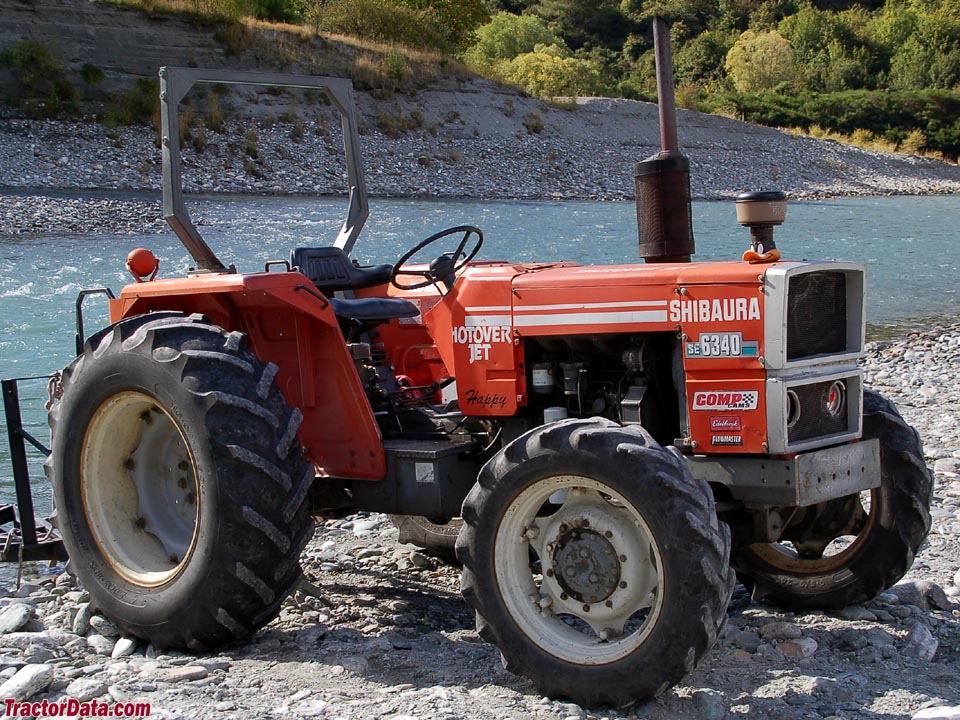

Shibaura SE6340
Shibaura SE6340 — SE SeriesUtility tractor · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
2722 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS.Reference
Variants
SE63002WDReference
SE63404WDReference
Engine
Shibaura 3.4L 3-cyl dieselReference
Engine47.0 kWReference
Shibaura LER1103Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke110 x 120 mmReference
Power47.0 kWReference
Air cleanerdry elementReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.0 LReference
Coolant capacity17.0 LReference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and 4 reverseReference
Clutch279mm dry discReference
Oil capacity45.0 LReference
Four gears, plus reverse, in four ranges.Reference
Capacities
Fuel60.0 LReference
PTO & Hydraulics
Hydraulic system25.0 LReference
Typeopen centerReference
Capacity25.0 LReference
Pressure200.0 barReference
Pump flow30.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/800/1000Reference
Engine RPM540@2200Reference
Engine RPM800@2200Reference
Engine RPM1000@2200Reference
Dimensions
Wheelbase210 cmReference
Weight2722 kgReference
Front tire9.50-24Reference
Rear tire16.9-30Reference
Standard tires (ag)Front: 9.50-24. Rear: 16.9-30Reference
Length370 cmReference
Width186 cmReference
Ground clearance36 cmReference
Front tread134 to 173 cmReference
Rear tread134 to 194 cmReference
Steering wheel172 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH150Reference
Shibaura SE6340 Height
Hood153 cmReference
ROPS248 cmReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
