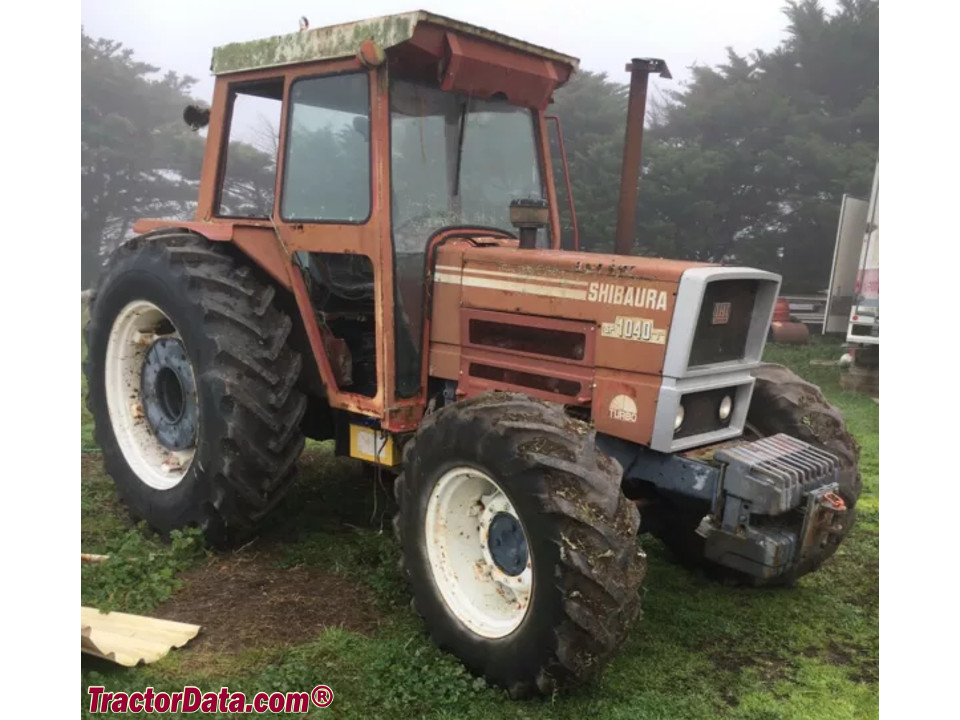

The Shibaura SF1040T is a tractor rated at approximately 96 hp, a mid-range power output for its class. It is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a 16-speed gearbox. The tractor has a listed operating weight of 3590 kg. It is suitable for operations spanning 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
3590 kg
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
96 hp
Recorded weight
3590 kg
Transmissions
16-speed constant mesh
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station. Two-post ROPS available.Reference
Variants
SF1000T2WDReference
SF1040T4WDReference
Engine
Shibaura 4.6L 4-cyl dieselReference
Engine78.3 kWReference
Shibaura LER1104TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power78.3 kWReference
Compression17:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed constant meshReference
Typeconstant meshReference
Gears16 forward and 4 reverseReference
Clutch355mm dry discReference
Four speeds, plus reverse, in four ranges.Reference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
Hydraulic system25.0 LReference
Typeopen centerReference
Capacity25.0 LReference
Pressure200.0 barReference
Pump flow35.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540/800/1000Reference
Capacities
Fuel99.9 LReference
Dimensions
Weight3590 kgReference
Front tire12.4-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length408 cmReference
Width187 cmReference
Height274 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps30Reference
Battery volts12Reference
Battery AH170Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
