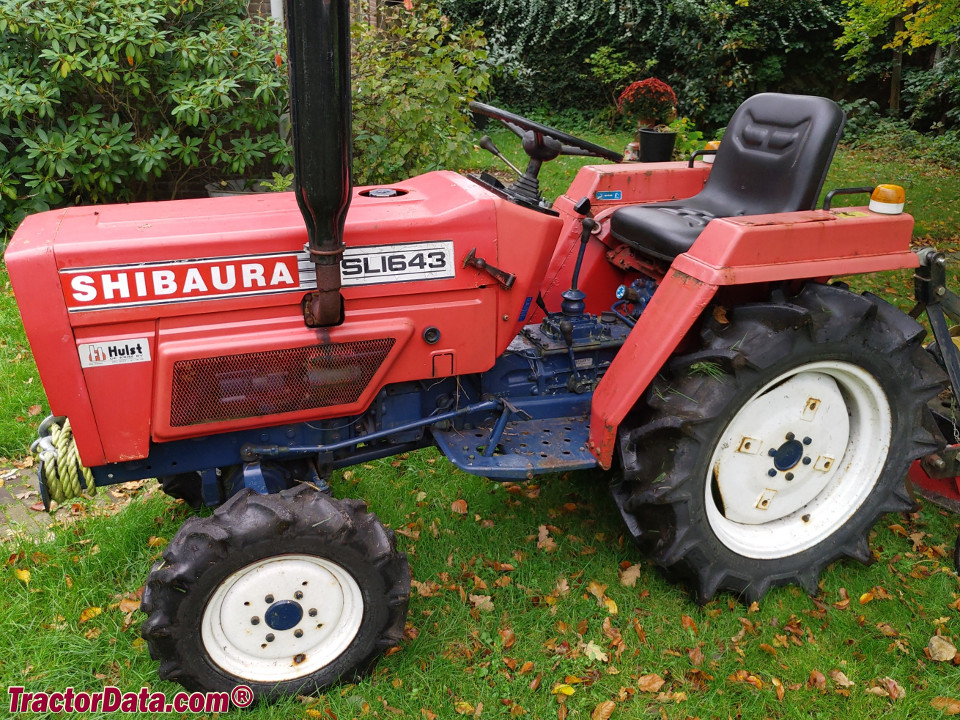

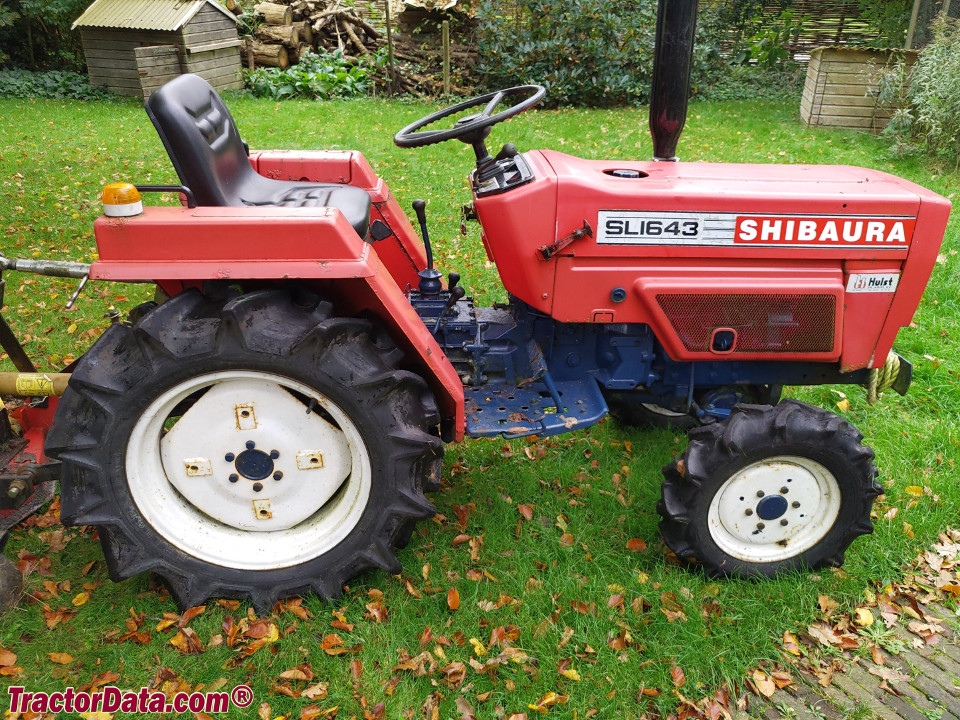

The Shibaura SL1643 is a tractor with a rating of approximately 16 hp, positioned at the lower end of its class. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, coupled with a 10-speed gearbox. The tractor's operating weight is specified as 680 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
680 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
16 hp
Recorded weight
680 kg
Transmissions
10-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Open operator station.Reference
Variants
SL16032WDReference
SL16434WDReference
Engine
Shibaura 1.0L 3-cyl dieselReference
Engine11.9 kWReference
Shibaura K713Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke71 x 80 mmReference
Power11.9 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Operating RPM1000-2600Reference
Starter volts12Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Five gears (1-5), plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Rear TypeIReference
Dimensions
Weight680 kgReference
Length215 cmReference
Width104 cmReference
Height172 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
