Tractor · Unverified

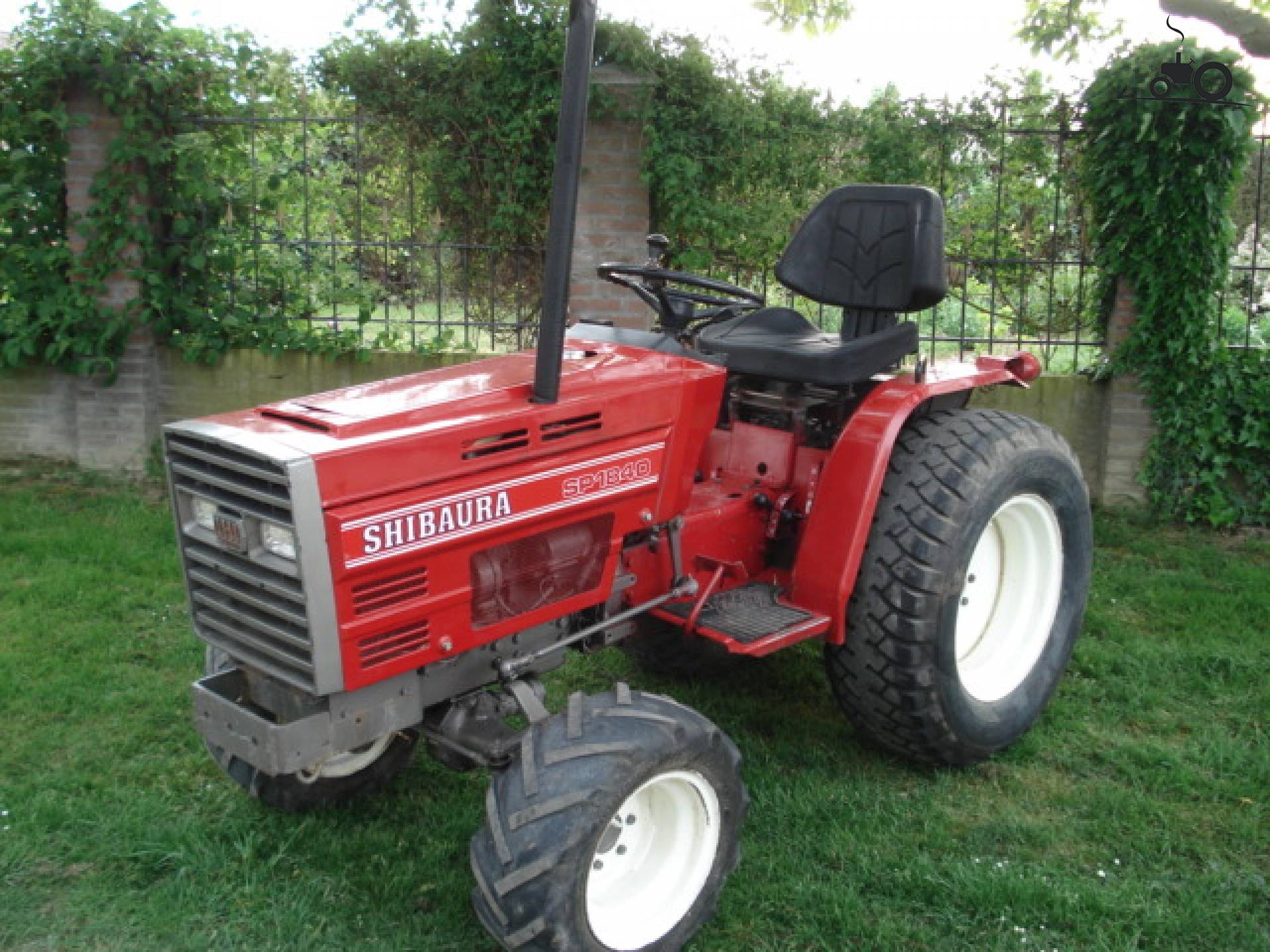

Shibaura SP1840
Shibaura SP1840 — SP SeriesCompact Utility tractor · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
580 kg
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
SP18002WDReference
SP18404WDReference
Engine
Shibaura 0.9L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine13.3 kWReference
Shibaura S723Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke72 x 72 mmReference
Power13.3 kWReference
Compression23:1Reference
Rated RPM2600Reference
Torque50.0 NmReference
Torque RPM1800Reference
StarterelectricReference
Starter volts12Reference
Starter power1.0 kWReference
Oil capacity3.0 LReference
Coolant capacity3.2 LReference
Transmission
6-speed synchromeshReference
9-speed creeperReference
TypesynchromeshReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity13.0 LReference
TypecreeperReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Typeopen centerReference
Rear Type0Reference
Controlposition controlReference
Rear lift1300 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM534@2600Reference
Engine RPM806@2600Reference
Engine RPM1053@2600Reference
Dimensions
Wheelbase128 cmReference
Weight580 kgReference
Front tire5.00-12Reference
Rear tire8.3-20Reference
Standard tires (ag)Front: 5.00-12. Rear: 8.3-20Reference
Length221 cmReference
Width101 cmReference
Height122 cmReference
Ground clearance26 cmReference
Front tread78 cmReference
Rear tread74/80 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps15Reference
Battery volts12Reference
Battery AH65Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
