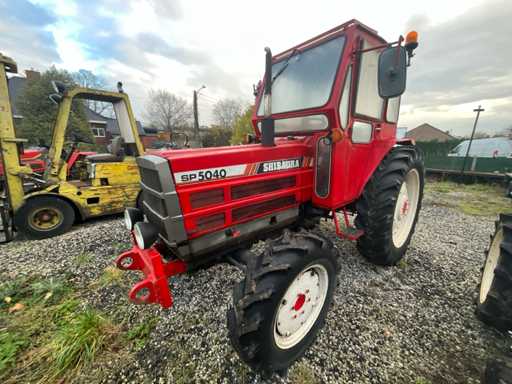

The Shibaura SP5040 tractor has a rated power output of 49 hp, positioning it at the lower end of its class. It is equipped with a 4-cylinder diesel liquid-cooled engine, and features four-wheel drive with a 12-speed gearbox. The tractor has an operating weight of 1910 kg, and is suitable for operations up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
1910 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
49 hp
Recorded weight
1910 kg
Transmissions
12-speed partially synchronized
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Variants
SP50002WDReference
SP50404WDReference
Engine
Shibaura 2.3L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine (gross)36.8 kWReference
Shibaura T845BReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power (gross)36.8 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Rear TypeIReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2075 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase196 cmReference
Weight1910 kgReference
Front tire8.3-20Reference
Rear tire12.4-32Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-32Reference
Length356 cmReference
Width167 cmReference
Height229 cmReference
Ground clearance36 cmReference
Front tread134 cmReference
Rear tread123 to 194 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
