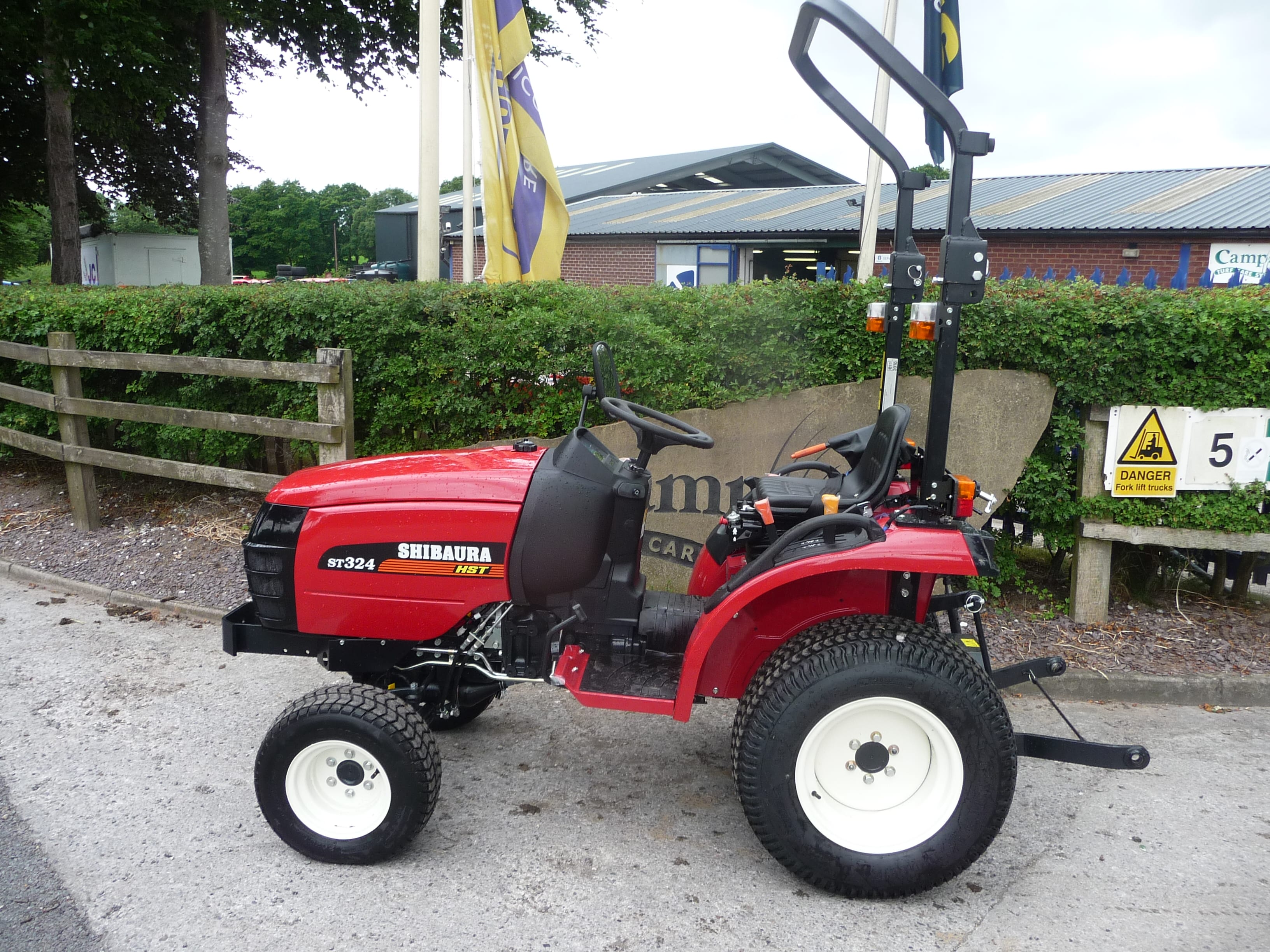

The Shibaura ST324 is a tractor model with a rated power of 19 hp, positioning it within the lighter range of its class. Fitted with a 3-cylinder diesel liquid-cooled engine, it features four-wheel drive and a hydrostatic transmission. The tractor has a listed operating weight of 743 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
743 kg
Catalogue coverage
Variants represented
2
Richest spec table
61 rows
Recorded power
19 hp
Recorded weight
743 kg
Transmissions
hydrostatic
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shiabaura 1.1L 3-cyl dieselReference
Engine17.9 kWReference
Shiabaura S773LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke77 x 82 mmReference
Power17.9 kWReference
Compression22.5:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.3 LReference
Coolant capacity3.5 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Hydraulic system15.9 LReference
Typeopen centerReference
Capacity15.9 LReference
Pressure127.5 barReference
Pump flow18.5 lpmReference
Rear TypeIReference
Rear lift668 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM561@2600Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Engine RPM2040@2600Reference
Capacities
Fuel20.1 LReference
Dimensions
Wheelbase140 cmReference
Weight743 kgReference
Front tire6-12Reference
Rear tire9.5-16Reference
Ag front6-12Reference
Ag rear9.5-16Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear29x12.00-15Reference
Length272 cmReference
Width118 cmReference
Height (ROPS)228 cmReference
Clearance (front axle)22 cmReference
Front tread92 cmReference
Rear tread89 to 96 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts14Reference
Battery volts12Reference
Speeds
With 29x12.00-15 R3 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
