Tractor · 2016Unverified

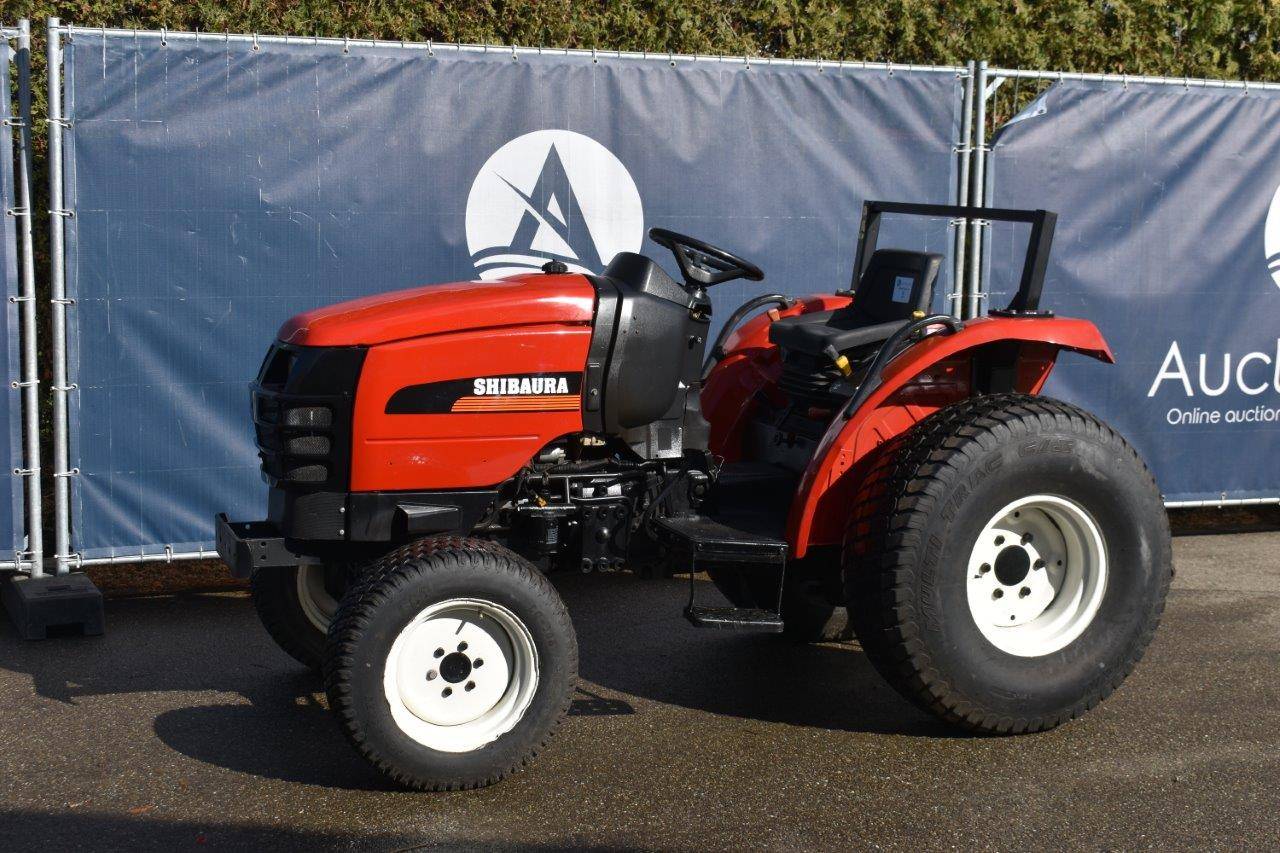

Shibaura ST330
Shibaura ST330 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2403 to 2458 pounds
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Shiabaura 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine22.4 kWReference
Shiabaura N843Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power22.4 kWReference
Compression22.2:1Reference
Rated RPM2800Reference
Starter volts12Reference
Coolant capacity5.0 LReference
Transmission
9-speed gearReference
hydrostaticReference
Gear Width134 cmReference
Gear Weight1114 kgReference
Gear Clearance (front axle)28 cmReference
Gear Steering wheel143 cmReference
Gear ROPS248 cmReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-speed)Reference
PTO & Hydraulics
Rear TypeIReference
Rear lift871 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2500Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase160 cmReference
Weight2403 to 2458 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Length282 cmReference
Hydro Width147 cmReference
Hydro Weight1090 kgReference
Hydro Clearance (front axle)24 cmReference
Hydro Steering wheel137 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Shibaura ST330 Height
Hydro ROPS242 cmReference
Speeds
With 11.2-24 rear tires.Reference
With 13.6-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
