Tractor · 1976Unverified

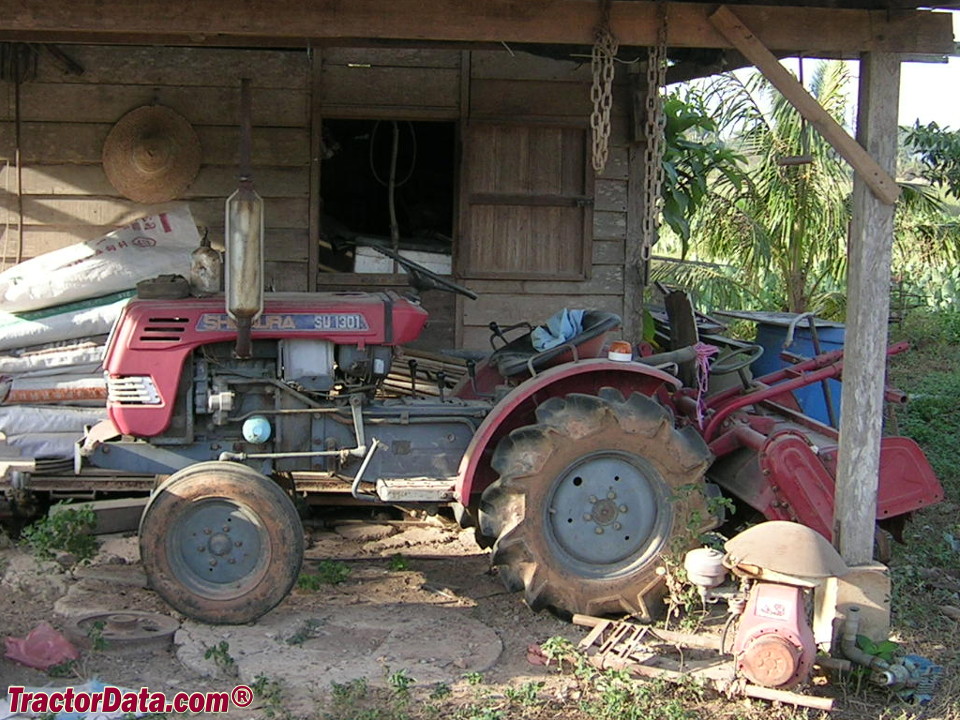

Shibaura SU1301
Shibaura SU1301 — SU Series · 13 hp. Reference specifications; pending source verification.
The Shibaura SU1301 is a compact tractor model with a rated output of 13 hp, making it a suitable choice for smaller tasks. This model was manufactured in 1976 and features a 2-cylinder diesel liquid-cooled engine, which drives the four-wheel drive system. The SU1301 has a listed weight of 581 kg and is generally suitable for jobs requiring up to 200 acres of land.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
581 kg
Catalogue coverage
Variants represented
2
Richest spec table
23 rows
Recorded power
13 hp
Recorded weight
581 kg
Production years
1976-1976
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerShibauraReference
Compact Utility tractorReference
Built in Matsumoto, JapanReference
Two-wheel driveReference
Open operator station.Reference
Variants
SU13012WDReference
SU13414WDReference
Engine
Shibaura 0.7L 2-cyl dieselReference
Engine9.7 kWReference
Shibaura LEK 752CReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Bore/Stroke75 x 80 mmReference
Power9.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Dimensions
Weight581 kgReference
Length208 cmReference
Width96 cmReference
Height177 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
