Tractor · 1936Unverified

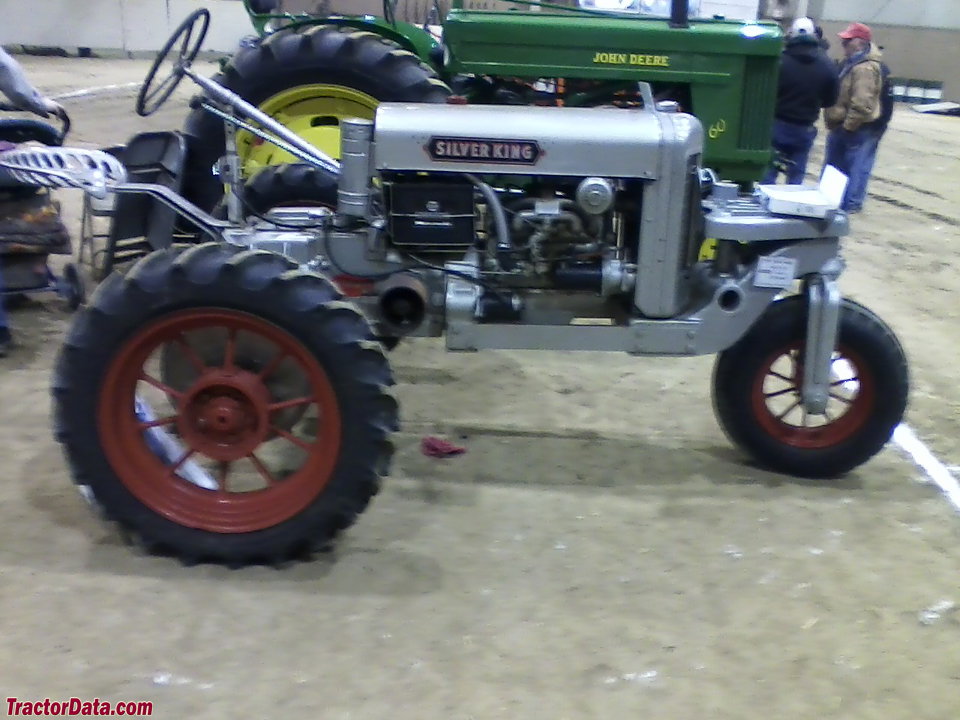

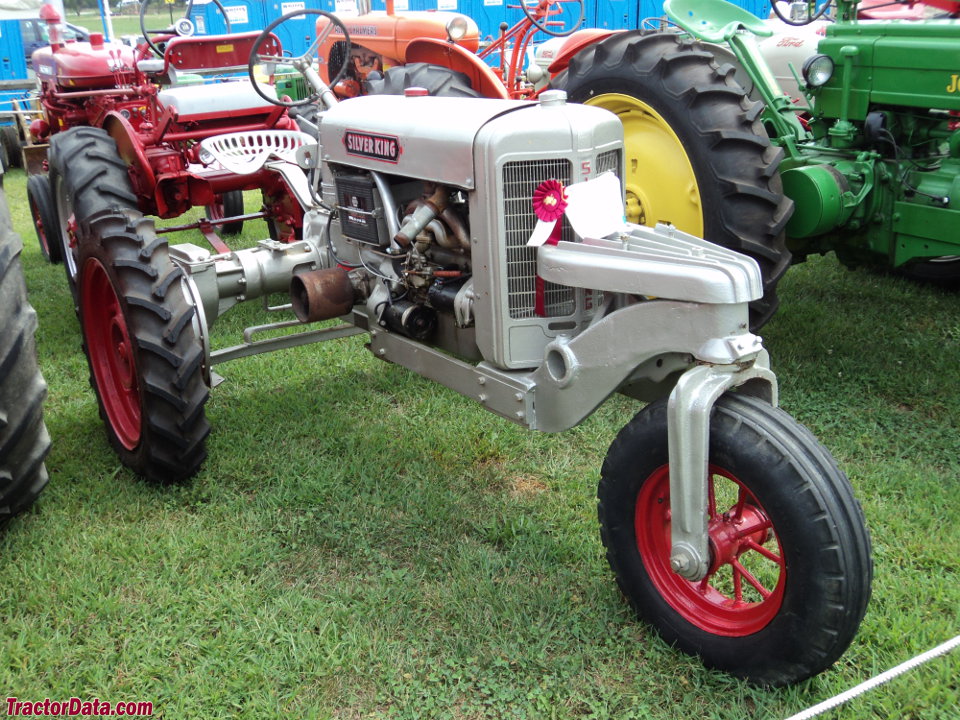

Silver King 3-Wheel
Silver King 3-Wheel — Row-Crop tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Max power
12.3 kW
Weight
1406 kg
Hover a source tag to verify
Overview
ManufacturerSilver King (a part of Fate-Root-Heath)Reference
Row-Crop tractorReference
Built in Plymouth, Ohio, USAReference
Drive3x2 2WDReference
Manual steeringReference
Open operator station.Reference
Dimensions
3-Wheelrow-crop three-wheelReference
4-Wheelstandard four-wheelReference
Wheelbase199 cmReference
Weight1406 kgReference
Front tire6.00-16Reference
Rear tire9.00-24Reference
Ag front6.00-16Reference
Ag rear9.00-24Reference
Ag front28-inch steelReference
Ag rear42-inch steelReference
Length325 cmReference
Width177 cmReference
Height162 cmReference
Ground clearance63 cmReference
Rear tread152 cmReference
Rear tread167 cmReference
Rear tread182 cmReference
Engine
Hercules 2.2L 4-cyl gasolineReference
Fuel tank49.2 LReference
Engine18.6 kWReference
Plows2 (14-inch)Reference
Drawbar (tested)12.3 kWReference
Belt (tested)14.7 kWReference
Hercules IXBReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 102 mmReference
Power18.6 kWReference
Air cleaneroil bathReference
Rated RPM1400Reference
Belt power (max)14.7 kWReference
Max power12.3 kWReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference
Test results
Gasoline March 23 - April 20, 1936Link: Nebraska Tractor Test 250 fileReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull747 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
