Tractor · 1942Unverified

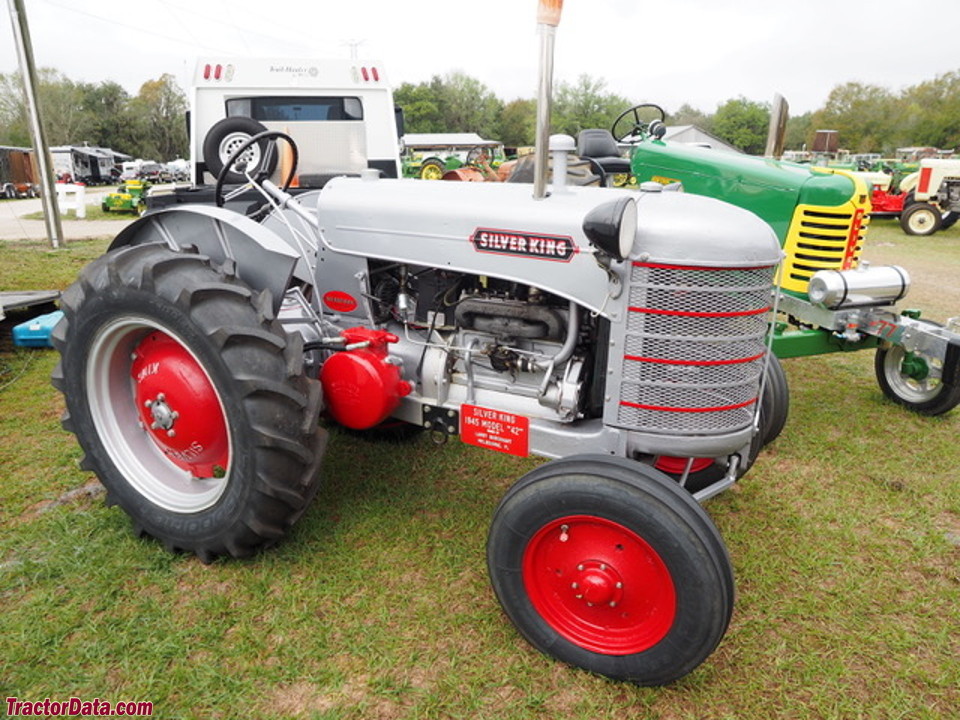

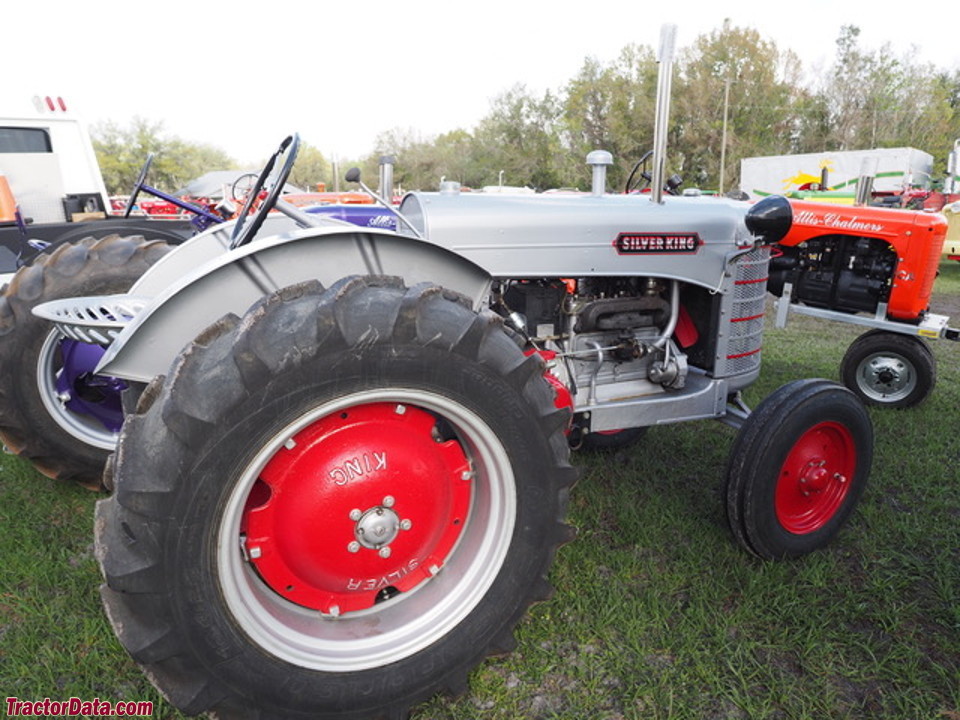

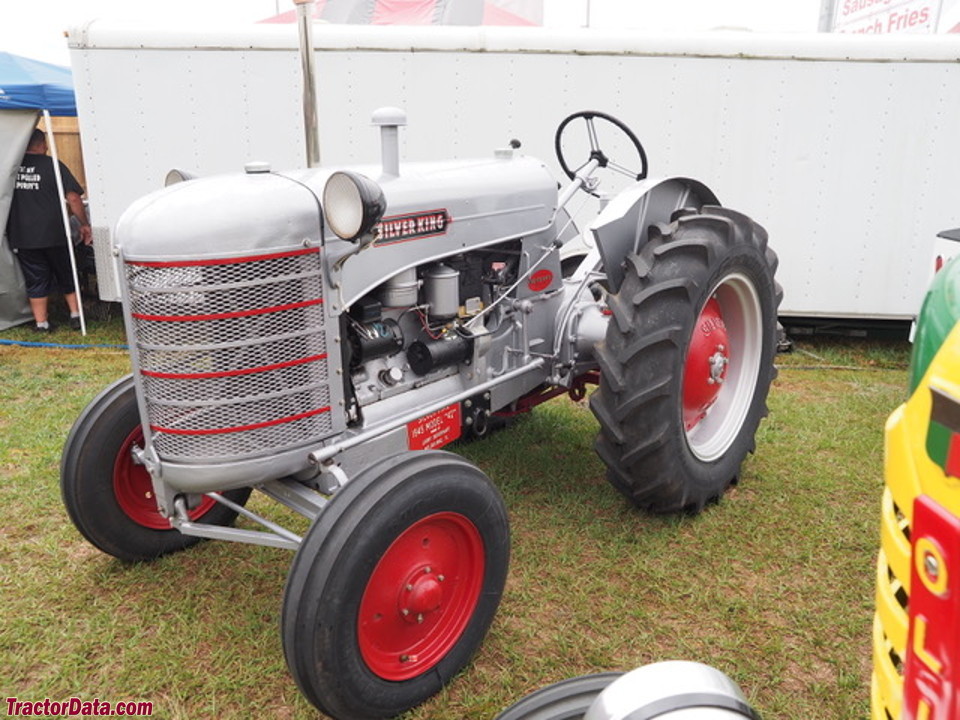

Silver King 42 Standard
Silver King 42 Standard — Standard-tread tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1451 kg
Hover a source tag to verify
Overview
ManufacturerSilver King (a part of Fate-Root-Heath)Reference
Standard-tread tractorReference
Built in Plymouth, Ohio, USAReference
Two-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Mechanical contracting band brakesReference
Open operator station.Reference
Variants
3-42three-wheelReference
4-42four-wheelReference
Engine
Continental 2.7L 4-cyl gasolineReference
Plows2-3 (14-inch)Reference
Continental F-162Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke87 x 111 mmReference
Fuel systemcarburetorReference
Air cleaneroil bathReference
Compression6:1Reference
Rated RPM1800Reference
Transmission
4-speedReference
TransmissiongearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase168 cmReference
Weight1451 kgReference
Front tire6.50-16Reference
Rear tire11-28Reference
Ag front6.50-16Reference
Ag rear11-28Reference
Length289 cmReference
Height167 cmReference
Shipping weight1451 kgReference
Ground clearance38 cmReference
Front tread121 cmReference
Rear tread111 to 182 cmReference
42 Standard Serial Numbers
19425256Reference
19435594Reference
19445710Reference
19456161Reference
19466449Reference
19476947Reference
19487475Reference
19498245Reference
19508395Reference
19518545Reference
19528627Reference
19538708Reference
19548717Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter16 cmReference
Width20 cmReference
RPM1800Reference
Speed944.88 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
