Tractor · 1978Unverified

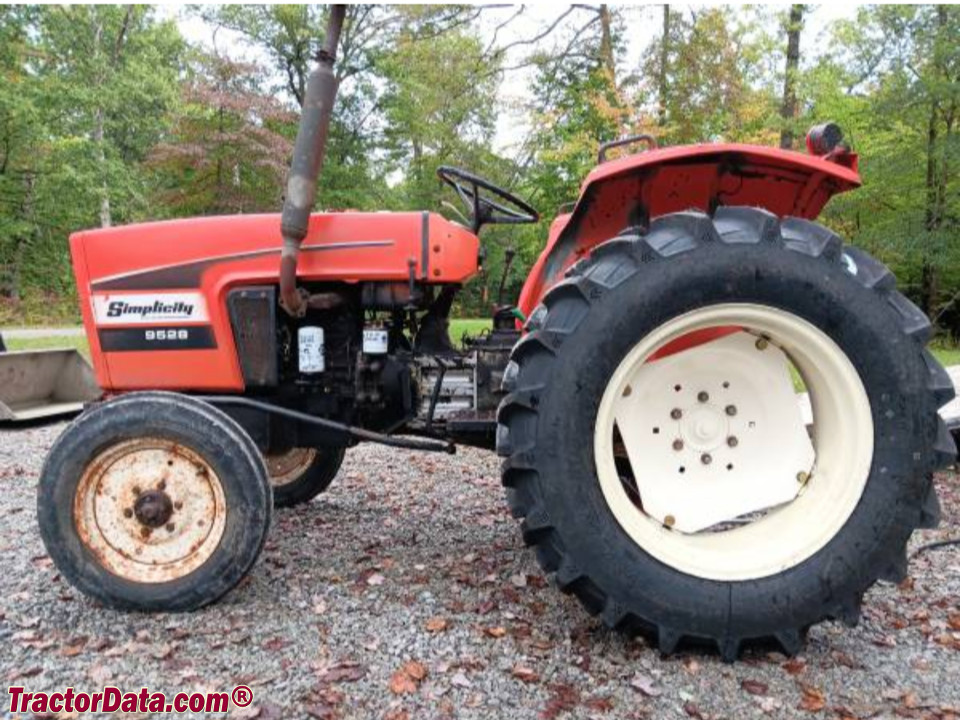

Simplicity 9528
Simplicity 9528 — Compact Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
952 kg
Hover a source tag to verify
Overview
DistributorSimplicityReference
ManufacturerHinomotoReference
Compact Utility tractorReference
Built in Osaka, JapanReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Drum brakesReference
Open operator station. Optional two-post ROPS and canopy.Reference
Variants
E280similar Hinomoto modelReference
5030similar Allis Chalmers modelReference
Engine
Toyosha 1.5L 2-cyl dieselReference
Engine20.9 kWReference
Toyosha S148Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke97 x 100 mmReference
Power20.9 kWReference
Fuel systemKiki PES-2K injection pumpReference
Air cleanerdry elementReference
Compression23:1Reference
Rated RPM2500Reference
Idle RPM750-2750Reference
Firing order1-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity5.0 LReference
Oil capacity4.7 LReference
Oil change100 hReference
Transmission
8-speed unsynchronized gearReference
12-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Clutch215mm dry discReference
Oil capacity25.4 LReference
Four gears (1-4) in two ranges (low/high). Tractor must be stopped, and clutch used, to shift gears or range.Reference
Gears12 forward and 3 reverseReference
Oil capacity20.8 LReference
Four gears, plus reverse, with high, low, and creeper ranges.Reference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Hydraulic system25.4 LReference
Typeopen centerReference
Capacity25.4 LReference
Total flow20.6 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear PTOcontinuousReference
Rear PTO Type540Reference
Engine RPM540@2320Reference
Capacities
Fuel26.5 LReference
Dimensions
Wheelbase156 cmReference
Weight952 kgReference
Front tire5.00x15Reference
Rear tire12.4x24Reference
Ag front5.00x15Reference
Ag rear12.4x24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Length255 cmReference
Width135 cmReference
Height (steering wheel)136 cmReference
Height (exhaust)208 cmReference
Shipping weight952 kgReference
Clearance (front axle)36 cmReference
Clearance (rear axle)39 cmReference
Clearance (drawbar)40 cmReference
Front tread103 to 129 cmReference
Rear tread103 to 158 cmReference
Simplicity 9528 attachments
60" rear-mount mower deckReference
9528 Serial Number Location
Serial number plate under steering wheel, ahead of the gear shift lever.Reference
Electrical
GroundnegativeReference
Charging systemHitachi LR115-58 alternatorReference
Charging amps15Reference
Charging volts12Reference
Battery volts12Reference
Battery AH70Reference
60" Mower deck
Typerear-mount SimplicityReference
Type3-bladeReference
Cutting width152 cmReference
Speeds
With 12.4x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
