Lawn Tractor · 2002Unverified

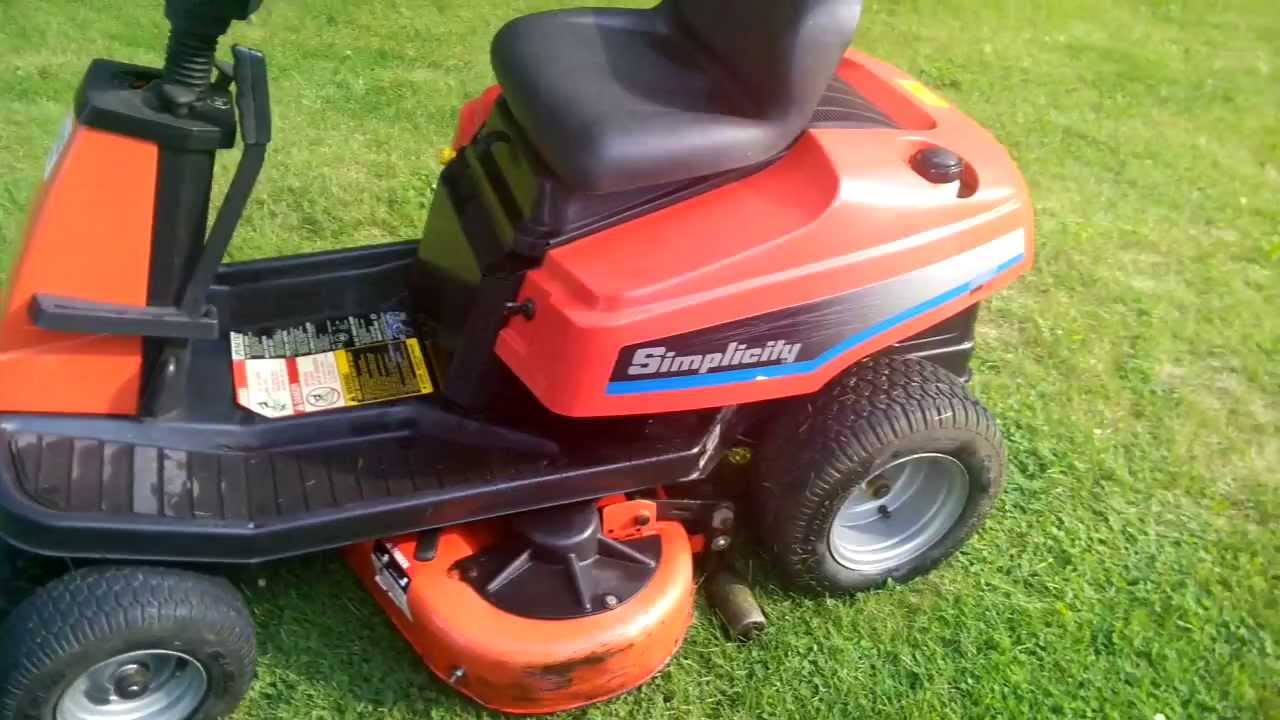

Simplicity Coronet 13/30
Simplicity Coronet 13/30 — Coronet Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
188 kg
Hover a source tag to verify
Overview
ManufacturerSimplicity (a part of Briggs & Stratton)Reference
Riding lawn mowerReference
Original price was $1,999 in 2003Reference
Two-wheel driveReference
Manual steeringReference
Open operator station with 13-inch seat.Reference
Variants
2413Hsimilar Massey Ferguson modelReference
Engine
13HP Briggs & Stratton 1-cyl gasolineReference
Fuel tank7.6 LReference
Briggs & Stratton 28M707Reference
gasolineReference
1-cylinderReference
air-cooled vertical-shaftReference
Power (gross)9.7 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro GearReference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase109 cmReference
Weight188 kgReference
Front tire13x5.0-6Reference
Rear tire16x6.5-8Reference
Weight35 kgReference
Lawn/turf front13x5.0-6Reference
Lawn/turf rear16x6.5-8Reference
Length154 cmReference
Width83 cmReference
Height104 cmReference
Front axleSteelReference
Rear axle19 mmReference
Simplicity Coronet 13/30 attachments
30" mid-mount mower deckReference
30" Mower deck
Typemid-mount Simplicity 1692543Reference
Type1-blade with manual liftReference
Cutting width76 cmReference
Overall width91 cmReference
Cut height2 to 9 cmReference
Cut positionsinfiniteReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
