Lawn Tractor · 2011Unverified

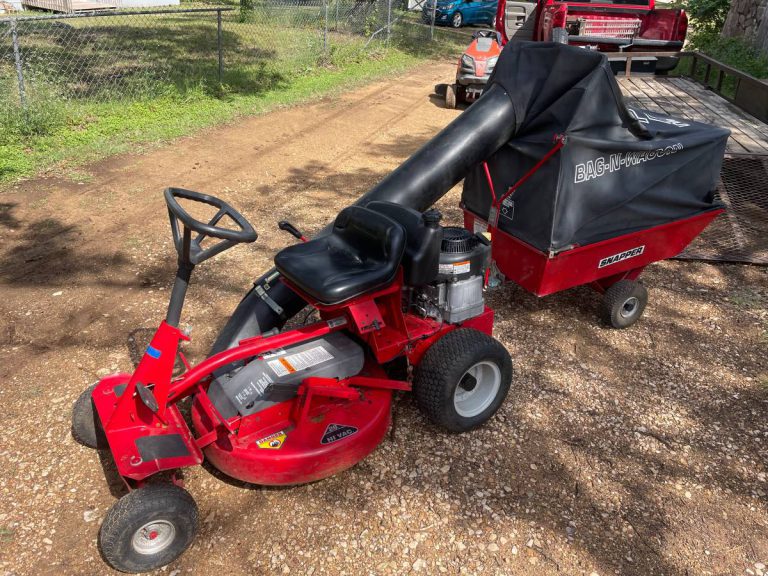

Snapper 2812524BVE
Snapper 2812524BVE — 24 Series · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
142 kg
Hover a source tag to verify
Overview
ManufacturerSnapper (a part of Briggs & Stratton)Reference
Riding lawn mowerReference
Built in McDonough, Georgia, USAReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
12.5HP Briggs & Stratton 344cc 1-cyl gasolineReference
Fuel tank6.6 LReference
Briggs & Stratton 219977Reference
gasolineReference
1-cylinderReference
air-cooled vertical-shaftReference
Displacement21 ciReference
Bore/Stroke87 x 57 mmReference
Power (gross)9.3 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
5-speed friction discReference
Typefriction discReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchmanualReference
Mid PTO TypepulleyReference
Dimensions
Wheelbase116 cmReference
Weight142 kgReference
Front tire11x4.00-4Reference
Rear tire16x6.50-8Reference
Lawn/turf front11x4.00-4Reference
Lawn/turf rear16x6.50-8Reference
Length162 cmReference
Height99 cmReference
Snapper 2812524BVE attachments
28" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
28" Mower deck
Typemid-mount SnapperReference
Type1-blade with manual liftReference
Cutting width71 cmReference
Overall width81 cmReference
Cut height3 to 10 cmReference
Cut positions5Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
