Lawn Tractor · 2012Unverified

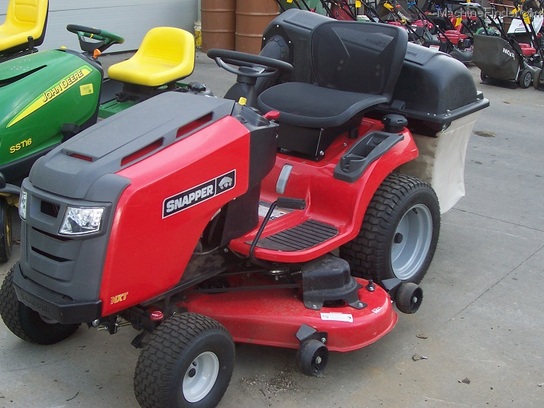

Snapper NXT 2652
Snapper NXT 2652 — NXT Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Hover a source tag to verify
Overview
ManufacturerSnapper (a part of Briggs & Stratton)Reference
Lawn tractorReference
Original price was $2,999 in 2012Reference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
26HP Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank13.2 LReference
Briggs & Stratton 44P777Reference
gasolineReference
2-cylinderReference
air-cooled vertical shaft V-TwinReference
Displacement44.18 ciReference
Bore/Stroke79 x 73 mmReference
Power (gross)19.4 kWReference
Starterelectric push buttonReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff Torq K46Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase127 cmReference
Front tire15x6Reference
Rear tire22x9.5Reference
Lawn/turf front15x6Reference
Lawn/turf rear22x9.5Reference
Length180 cmReference
Width157 cmReference
Height114 cmReference
Front axleCast ironReference
Snapper NXT 2652 attachments
52" mid-mount mower deckReference
snowblowerReference
bladeReference
Electrical
GroundnegativeReference
Battery CCA230Reference
Battery volts12Reference
Attachment overview
52" mid-mount mower deckReference
SnowblowerReference
BladeReference
52" Mower deck
Typemid-mount SnapperReference
Type3-blade with electric liftReference
Cutting width132 cmReference
Cut height3 to 10 cmReference
Cut positionsinfiniteReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
