Lawn Tractor · 2013Unverified

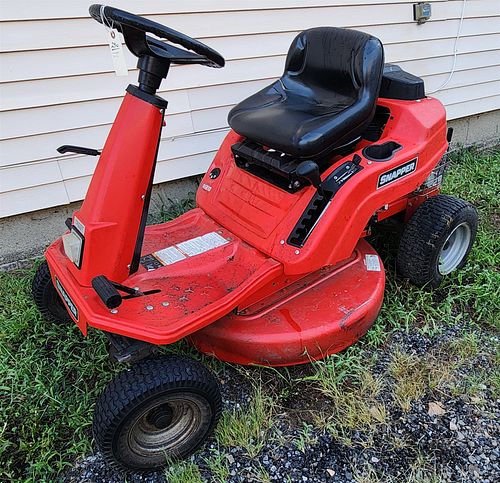

Snapper RE210
Snapper RE210 — Riding lawn mower · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Hover a source tag to verify
Overview
ManufacturerSnapper (a part of Briggs & Stratton)Reference
Riding lawn mowerReference
Original price was $2,099 in 2014Reference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
15.5HP Briggs and Stratton 499cc 1-cyl gasolineReference
Fuel tank7.6 LReference
Briggs and Stratton 31S777Reference
gasolineReference
1-cylinderReference
air-cooled vertical-shaftReference
Displacement30.5 ciReference
Bore/Stroke90 x 78 mmReference
Power (gross)11.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro-Gear T2Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchmechanicalReference
Dimensions
Front tire13x5-6Reference
Rear tire16x6.5-8Reference
Lawn/turf front13x5-6Reference
Lawn/turf rear16x6.5-8Reference
Length172 cmReference
Width93 cmReference
Height109 cmReference
Front axleSteelReference
Snapper RE210 attachments
33" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery CCA190Reference
Battery volts12Reference
33" Mower deck
Typemid-mount SnapperReference
Type1-blade with manual liftReference
Cutting width83 cmReference
Cut height3 to 10 cmReference
Cut positions6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
