Lawn Tractor · 2012Unverified

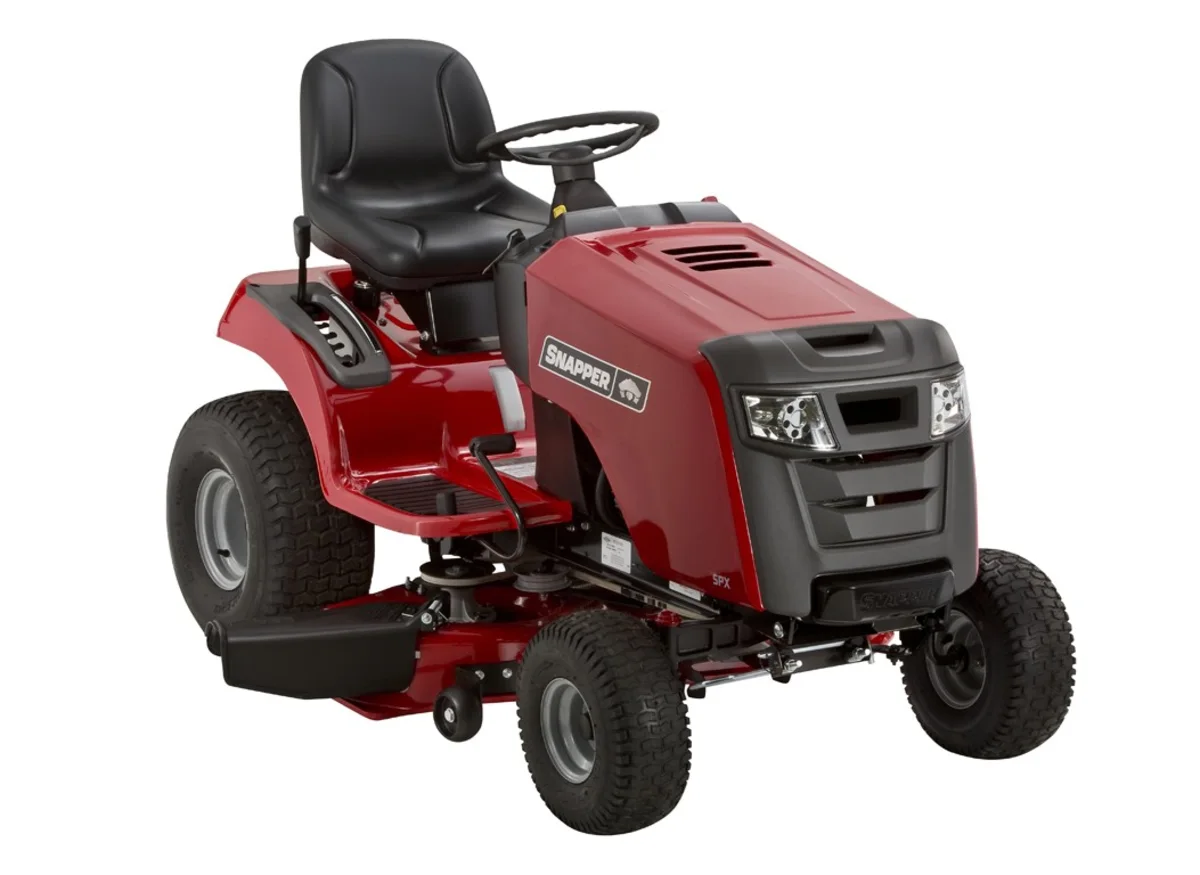

Snapper SPX 2042
Snapper SPX 2042 — SPX Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Hover a source tag to verify
Overview
ManufacturerSnapper (a part of Briggs & Stratton)Reference
Lawn tractorReference
Original price was $1,799 in 2012Reference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
20HP Briggs & Stratton 540cc 1-cyl gasolineReference
Fuel tank13.2 LReference
Briggs & Stratton 33M677Reference
gasolineReference
1-cylinderReference
air-cooled vertical-shaftReference
Displacement33 ciReference
Bore/Stroke94 x 78 mmReference
Power (gross)14.9 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro-Gear T2Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase127 cmReference
Front tire15x6-6Reference
Rear tire20x8.0-8Reference
Lawn/turf front15x6-6Reference
Lawn/turf rear20x8.0-8Reference
Length180 cmReference
Width132 cmReference
Height114 cmReference
Front axleCast ironReference
Snapper SPX 2042 attachments
42" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery CCA230Reference
Battery volts12Reference
42" Mower deck
Typemid-mount SnapperReference
Type2-blade with manual liftReference
Cutting width106 cmReference
Cut height3 to 10 cmReference
Cut positions7Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
