Lawn Tractor · 2012Unverified

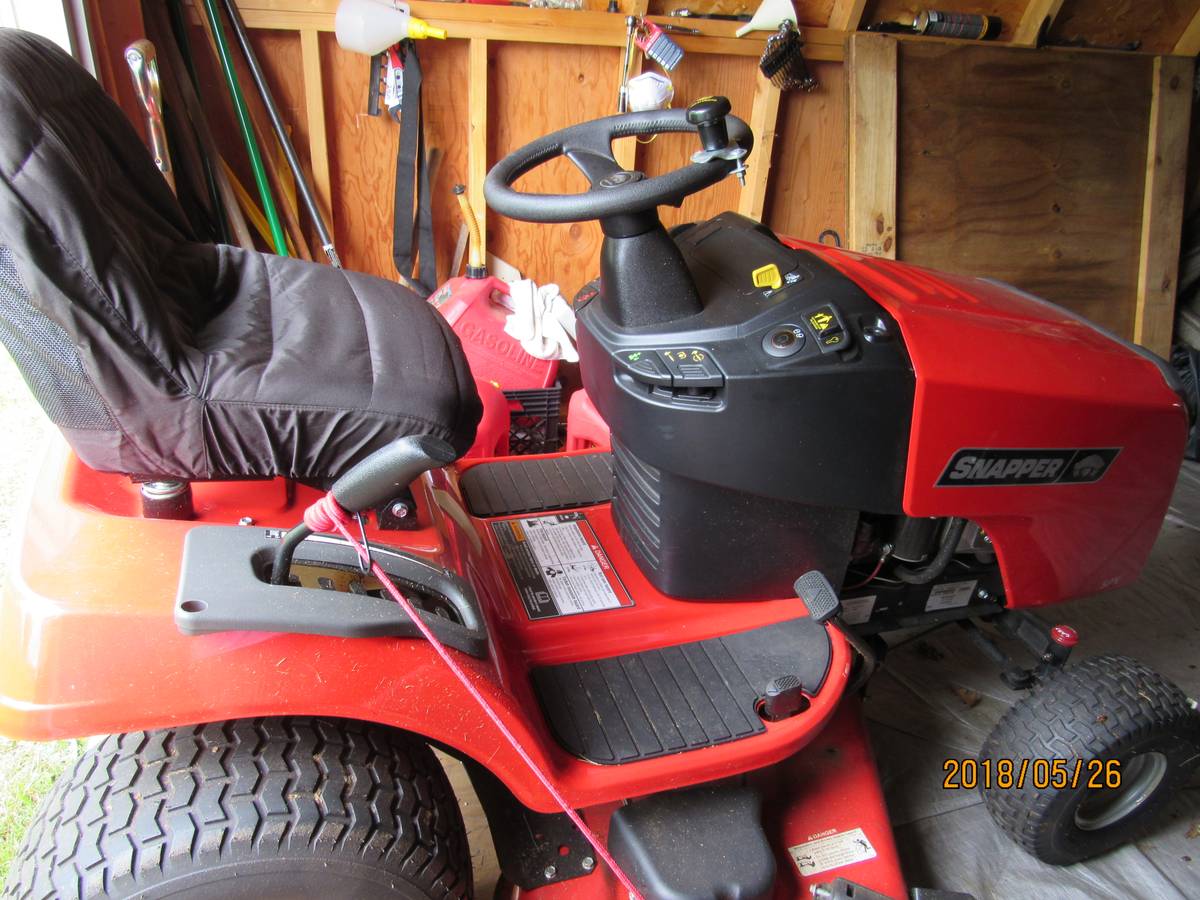

Snapper SPX 2352
Snapper SPX 2352 — SPX Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Hover a source tag to verify
Overview
ManufacturerSnapper (a part of Briggs & Stratton)Reference
Lawn tractorReference
Original price was $2,499 in 2014Reference
Two-wheel driveReference
Manual steeringReference
Engine
23HP Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank13.2 LReference
Briggs & Stratton 44L777Reference
gasolineReference
2-cylinderReference
air-cooled vertical shaft V-TwinReference
Displacement44.18 ciReference
Bore/Stroke79 x 73 mmReference
Power (gross)17.2 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionHydro-Gear T2Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase127 cmReference
Front tire15x6-6Reference
Rear tire20x10.0-8Reference
Lawn/turf front15x6-6Reference
Lawn/turf rear20x10.0-8Reference
Lawn/turf rear22x9.5-12Reference
Length180 cmReference
Width154 cmReference
Height114 cmReference
Front axleCast ironReference
Snapper SPX 2352 attachments
46" mid-mount mower deckReference
52" mid-mount mower deckReference
bladeReference
Electrical
GroundnegativeReference
Battery CCA230Reference
Battery volts12Reference
Attachment overview
46" mid-mount mower deckReference
52" mid-mount mower deckReference
BladeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
