Tractor · 2019Unverified

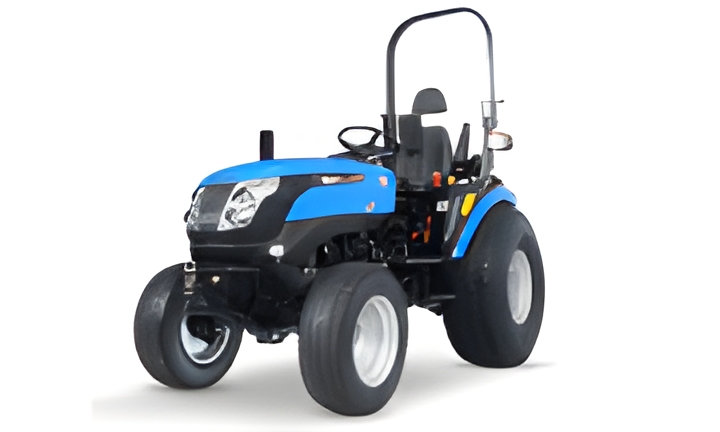

Solis H26
Solis H26 — H Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
1235 kg
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Compact Utility tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine19.4 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power19.4 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Torque76.3 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Pump flow16.7 lpmReference
Rear TypeINReference
Rear lift600 kgReference
Rear lift775 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase156 cmReference
Weight1235 kgReference
Front tire6.5/80-12Reference
Rear tire280/70R18Reference
Standard tires (ag)Front: 6.5/80-12. Rear: 280/70R18Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6-16Reference
Industrial front23x8.50-12Reference
Industrial rear33x15.5-16.5Reference
Length289 cmReference
Width121 cmReference
Height (ROPS)232 cmReference
Ground clearance24 cmReference
Front tread88 cmReference
Rear tread96 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps42Reference
Battery volts12Reference
Battery AH65Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
