Tractor · 2019Unverified

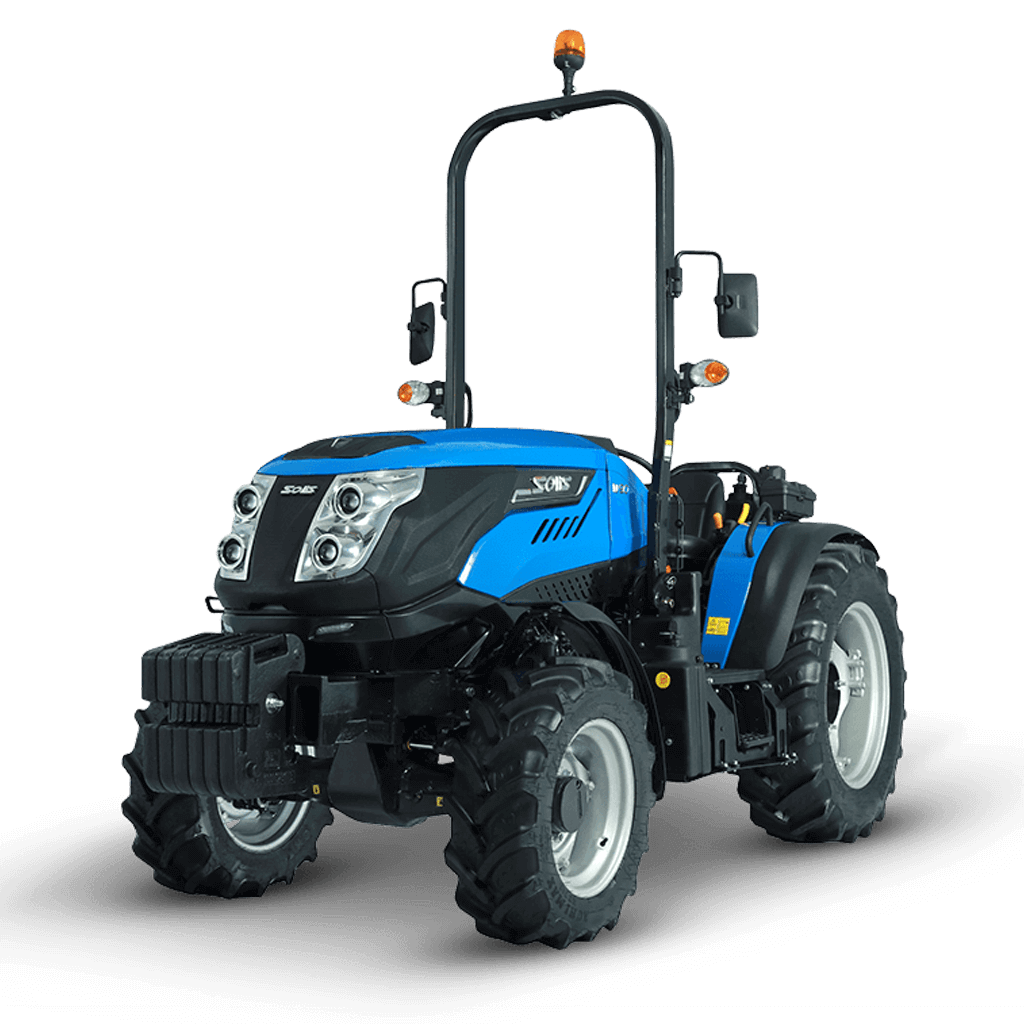

Solis N90
Solis N90 — N Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3240 kg
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Orchard/Vineyard tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Two-post mid-mount folding ROPS. Cab optional.Reference
Engine
ITL 4.1L 4-cyl dieselReference
ROPS Fuel tank60.2 LReference
Cab Fuel tank79.9 LReference
Exhaust fluid (DEF)12.1 LReference
Engine67.1 kWReference
ITL 4105Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke105 x 118 mmReference
Power67.1 kWReference
Air cleanerdual stage dryReference
Rated RPM2200Reference
Torque375.1 NmReference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
20-speed creeperReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase230 cmReference
Weight3240 kgReference
Front tire8-18Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-24Reference
Length424 cmReference
Width140 cmReference
Height (ROPS)280 cmReference
Ground clearance28 cmReference
Front tread115 cmReference
Rear tread102 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
