Tractor · 2020Unverified

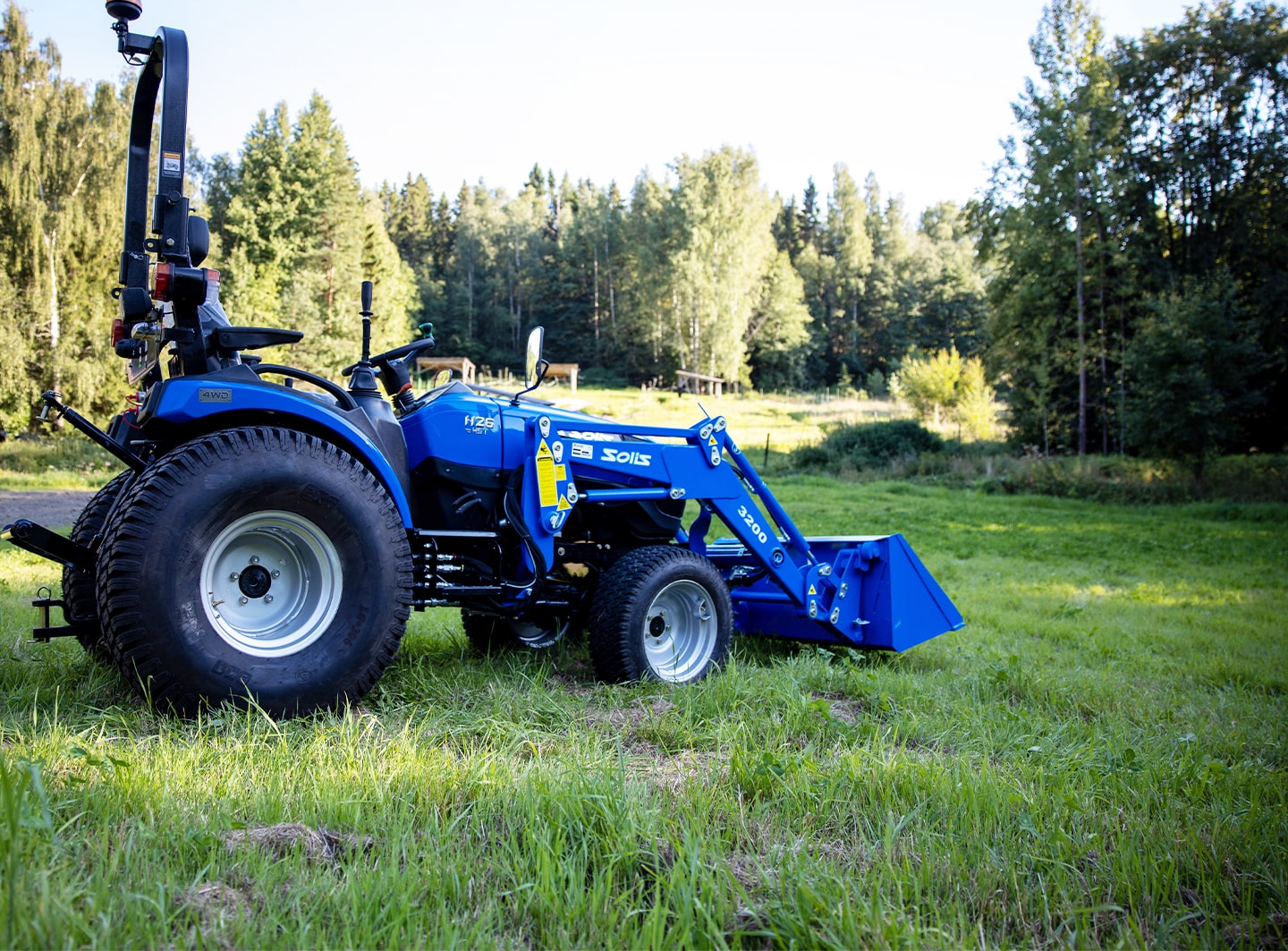

Solis S22
Solis S22 — S Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
995 kg
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Compact Utility tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
ITL 1.1L 3-cyl dieselReference
Fuel tank26.1 LReference
Engine16.4 kWReference
ITLReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Power16.4 kWReference
Air cleanerdryReference
Rated RPM2700Reference
Torque55.1 NmReference
Torque RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeINReference
Rear lift600 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase155 cmReference
Weight995 kgReference
Front tire6.5/80-12Reference
Rear tire280/70R18Reference
Standard tires (ag)Front: 6.5/80-12. Rear: 280/70R18Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear33x15.5-16.5Reference
Industrial front23x8.50-12Reference
Industrial rear33x15.5-16.5Reference
Length275 cmReference
Width107 cmReference
Height (ROPS)194 cmReference
Ground clearance23 cmReference
Front tread87 cmReference
Rear tread83 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps42Reference
Battery volts12Reference
Battery AH65Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
