Tractor · 2023Unverified

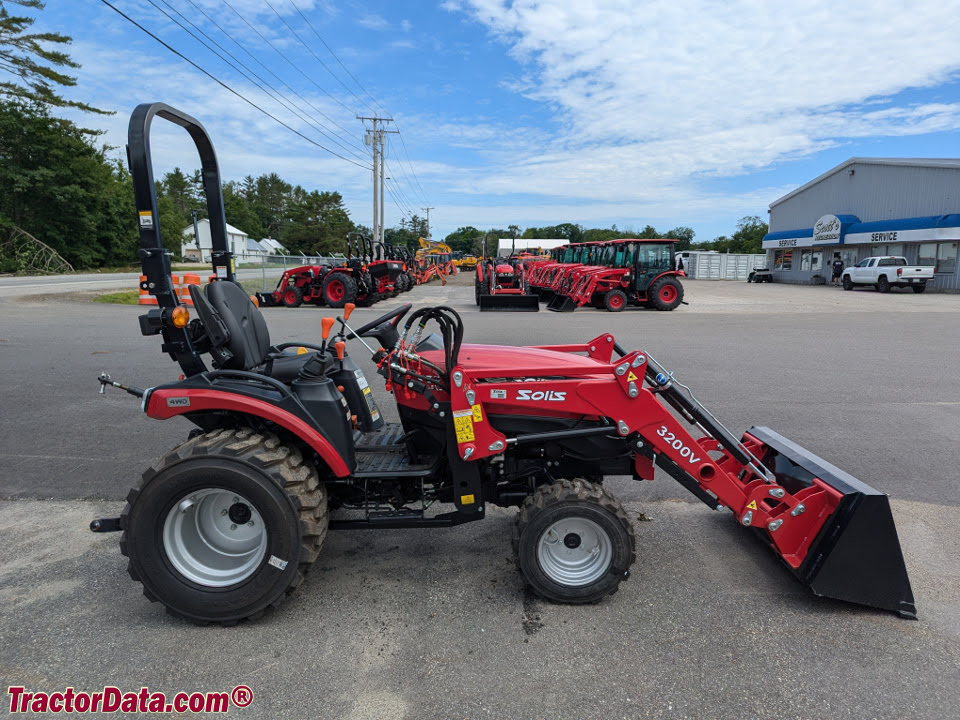

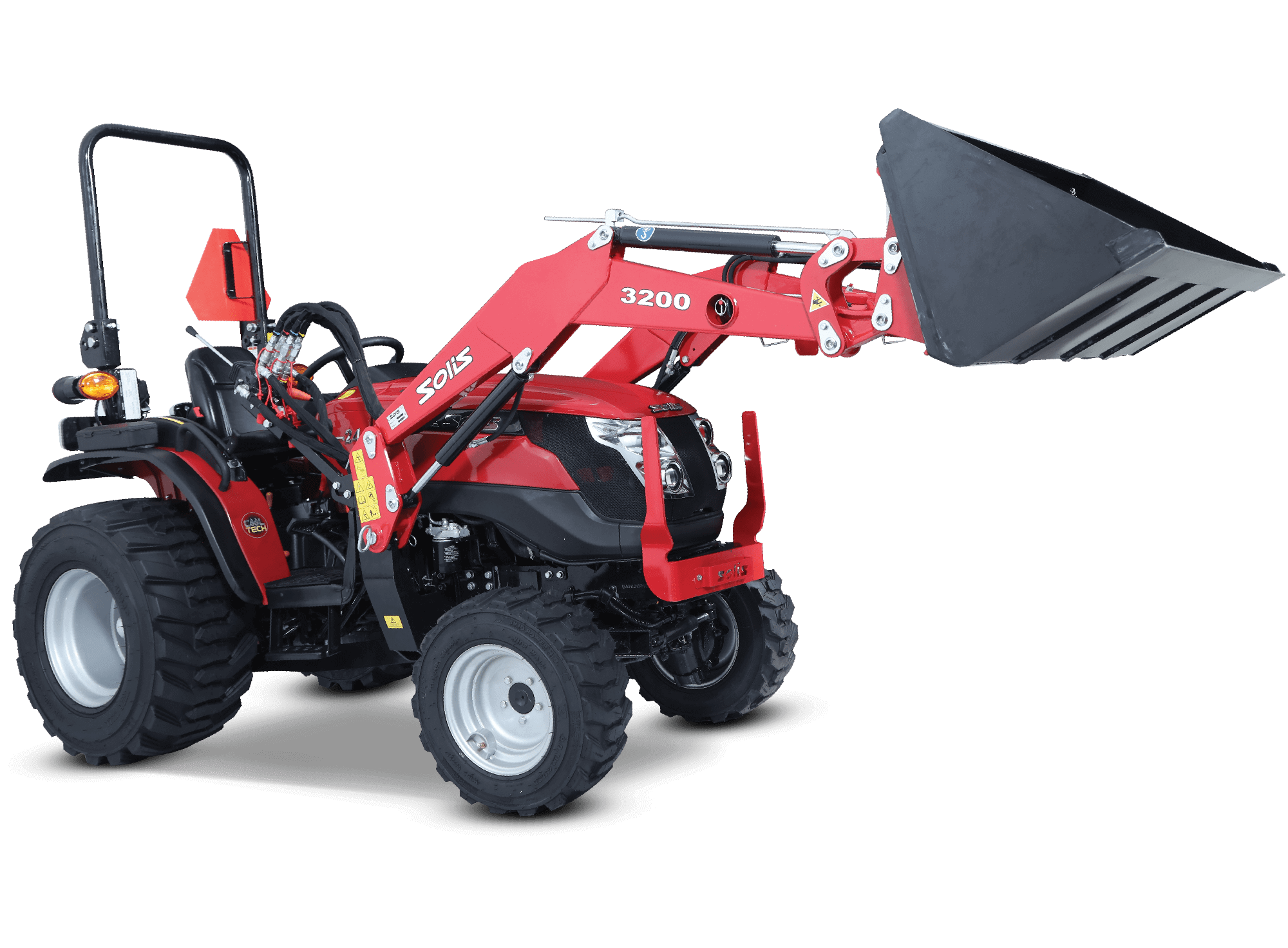

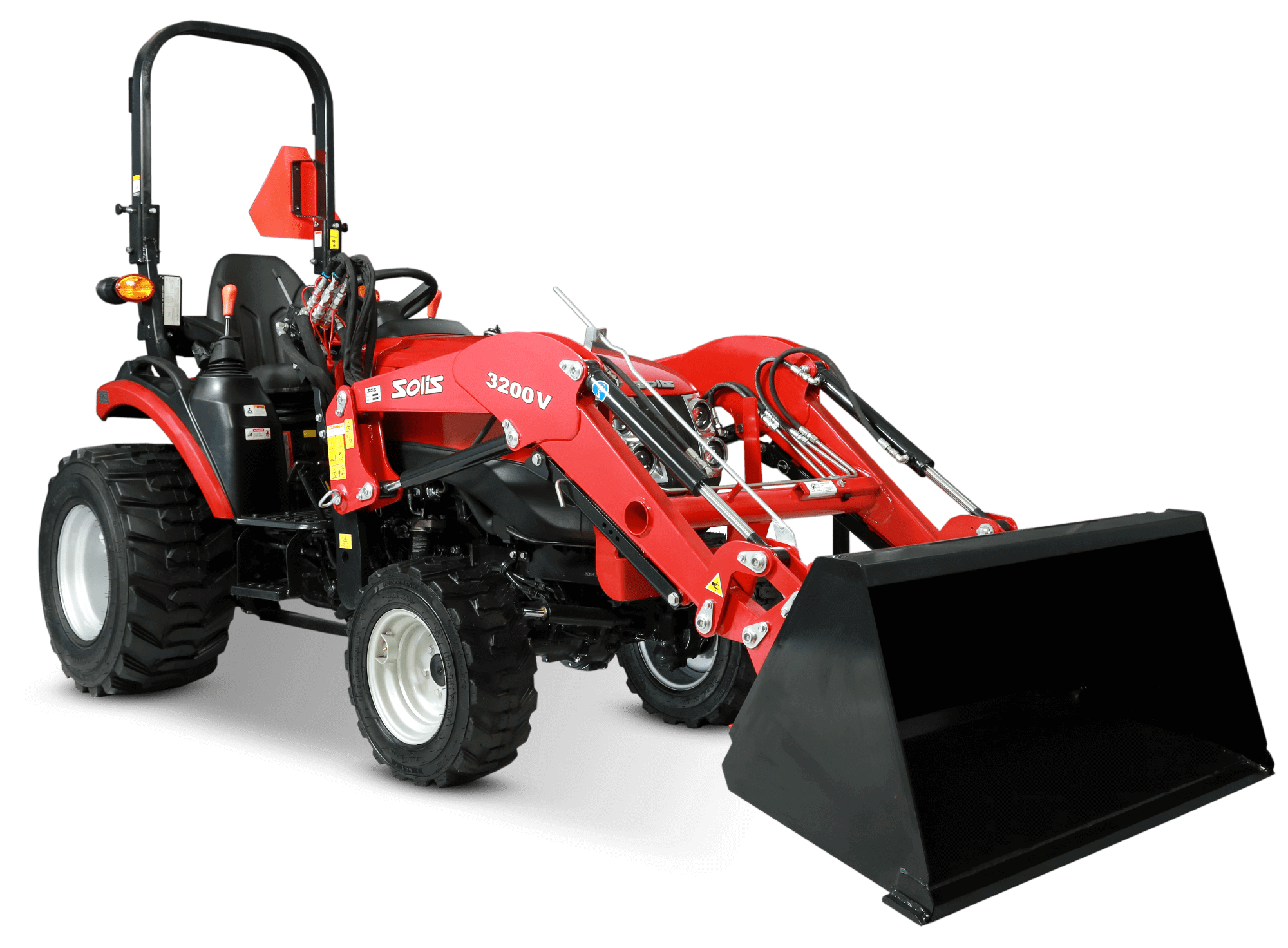

Solis S24XL
Solis S24XL — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1139 kg
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Compact Utility tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post folding ROPS.Reference
Variants
S24gearReference
S24XLshuttleReference
H24hydrostaticReference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine17.9 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power17.9 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Torque76.3 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed shuttleReference
TypeshuttleReference
Gears9 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow24.6 lpmReference
Rear TypeINReference
Rear lift (at ends)595 kgReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase156 cmReference
Weight1139 kgReference
Front tire6-12Reference
Rear tire8.3-20Reference
Weight374 kgReference
Standard tires (ag)Front: 6-12. Rear: 8.3-20Reference
Optional tires (ag)Front: 7-14. Rear: 8.3-24Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear33x15.5-16.5Reference
Lawn/turf front220/55R12Reference
Lawn/turf rear280/70R16Reference
Industrial front23x8.50-12Reference
Industrial rear33x15.5-16.5Reference
Length289 cmReference
Width121 cmReference
Height (ROPS)232 cmReference
Solis S24XL attachments
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Solis SLBH-155 Backhoe
Backhoe typeSolis SLBH-155 BackhoeReference
Bucket width35 cmReference
Bucket width40 cmReference
Digging depth152 cmReference
Reach from pivot224 cmReference
Loading height154 cmReference
Bucket Rotation180°Reference
Bucket force1088 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
