Tractor · 2019Unverified

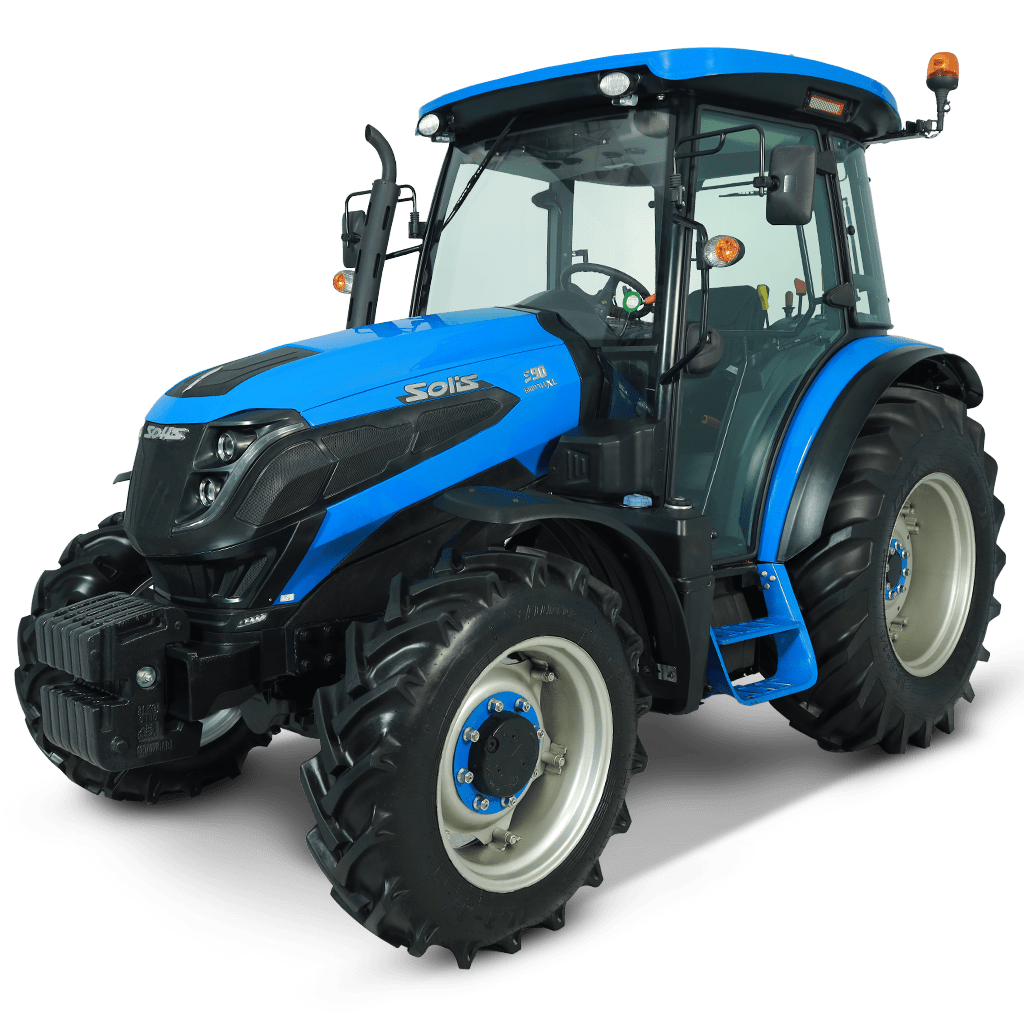

Solis S90
Solis S90 — S Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
8807 to 9359 pounds
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Utility tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Two-post folding ROPS. Cab optional.Reference
Engine
ITL 4.1L 4-cyl dieselReference
Engine67.1 kWReference
ITL 4105Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke105 x 118 mmReference
Power67.1 kWReference
Air cleanerdual stage dryReference
Rated RPM2200Reference
Torque375.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
20-speed creeperReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears20 forward and reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2500 kgReference
Rear lift3000 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase234 cmReference
Weight8807 to 9359 poundsReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 16.9-34Reference
Length420 cmReference
Width210 cmReference
Height (ROPS)271 cmReference
ROPS Weight3994 kgReference
Cab Weight4245 kgReference
Ground clearance40 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
