Tractor · 2013Unverified
Solis Solis 20

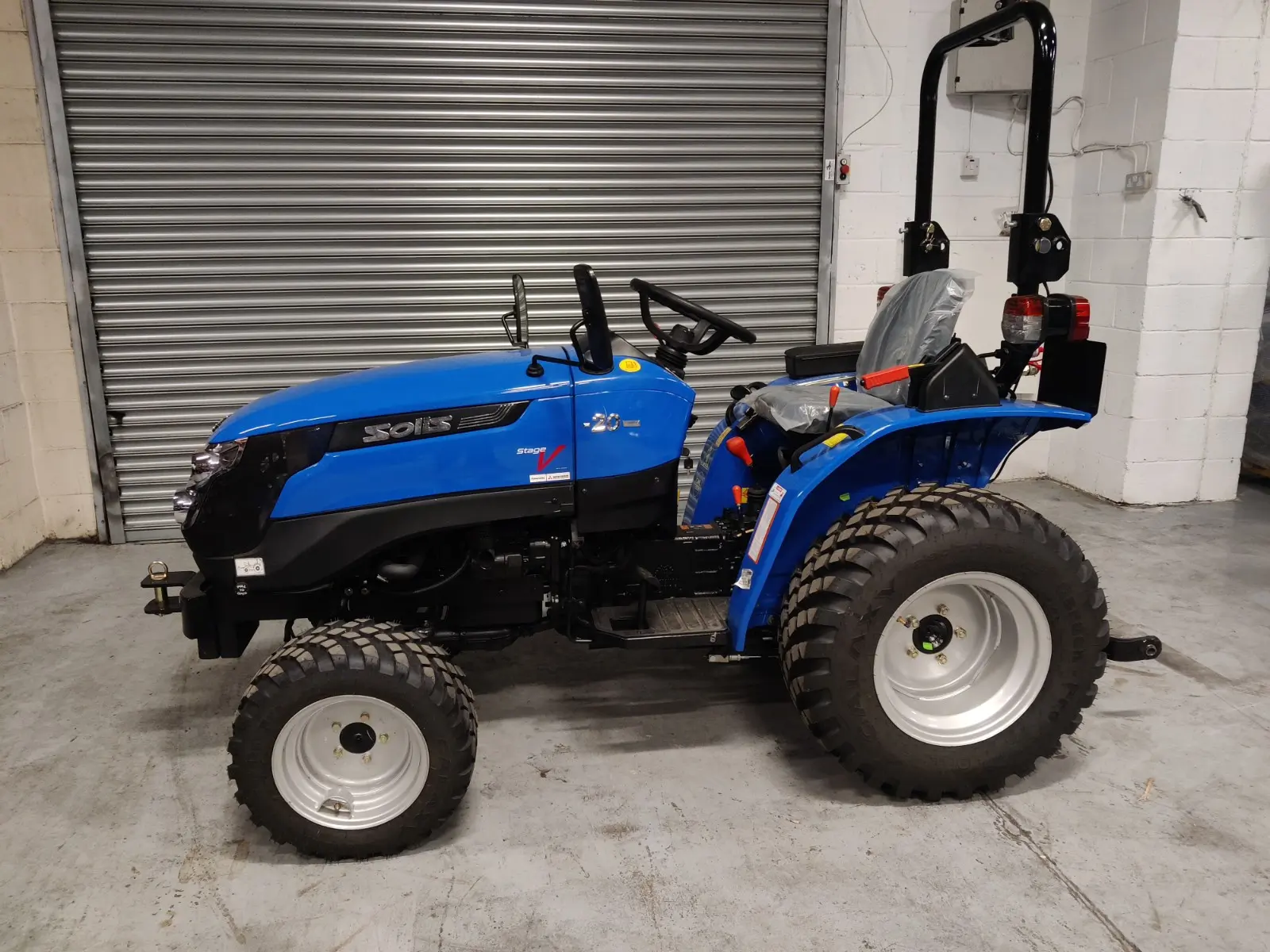

Solis Solis 20 — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Mechanical dry drum brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Engine14.9 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power14.9 kWReference
Air cleaneroil bathReference
Rated RPM2700Reference
Torque52.3 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.1 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity15.7 LReference
Capacities
Fuel29.9 LReference
PTO & Hydraulics
Hydraulic system15.7 LReference
Capacity15.7 LReference
Valves1Reference
Rear TypeINReference
Controlposition controlReference
Rear lift499 kgReference
Rear PTO Type540/540E/1000 (1.375)Reference
Dimensions
Wheelbase141 cmReference
Weight810 kgReference
Front tire5x12Reference
Rear tire8x15Reference
Standard tires (ag)Front: 5x12. Rear: 8x15Reference
Length230 cmReference
Width94 cmReference
Height (ROPS)195 cmReference
Clearance (rear axle)20 cmReference
Front tread82 to 103 cmReference
Rear tread72 to 86 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps42Reference
Charging volts12Reference
Battery volts12Reference
Battery AH50Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
