Tractor · 2015Unverified
Solis Solis 75N

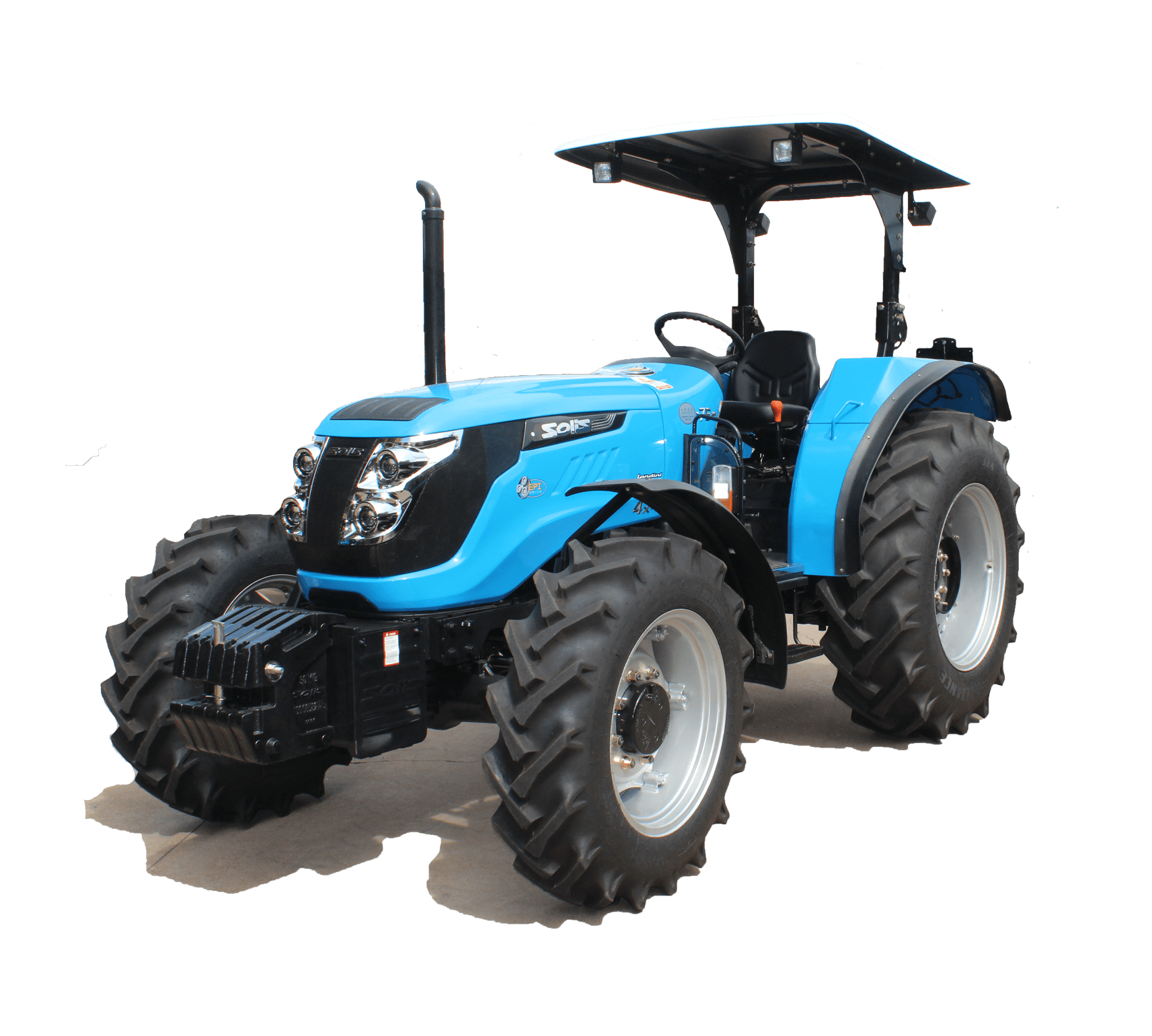

Solis Solis 75N — Orchard/Vineyard tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
2886 kg
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Orchard/Vineyard tractorReference
Built in IndiaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Trailer brakeshydraulicReference
Two-post mid-mount ROPS.Reference
Variants
Solis 75utilityReference
Solis 75NvineyardReference
Engine
Sonalika 3.7L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine55.9 kWReference
SonalikaReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke100 x 118 mmReference
Power55.9 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque289.1 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.8 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
PTO & Hydraulics
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2500 kgReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase221 cmReference
Weight2886 kgReference
Front tire210/95R18Reference
Rear tire360/70R28Reference
Standard tires (ag)Front: 210/95R18. Rear: 360/70R28Reference
Length415 cmReference
Width147 cmReference
Height (ROPS)270 cmReference
Clearance (front axle)29 cmReference
Clearance (rear axle)26 cmReference
Front tread115 to 128 cmReference
Rear tread97 to 108 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts12Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
