Tractor · 2013Unverified

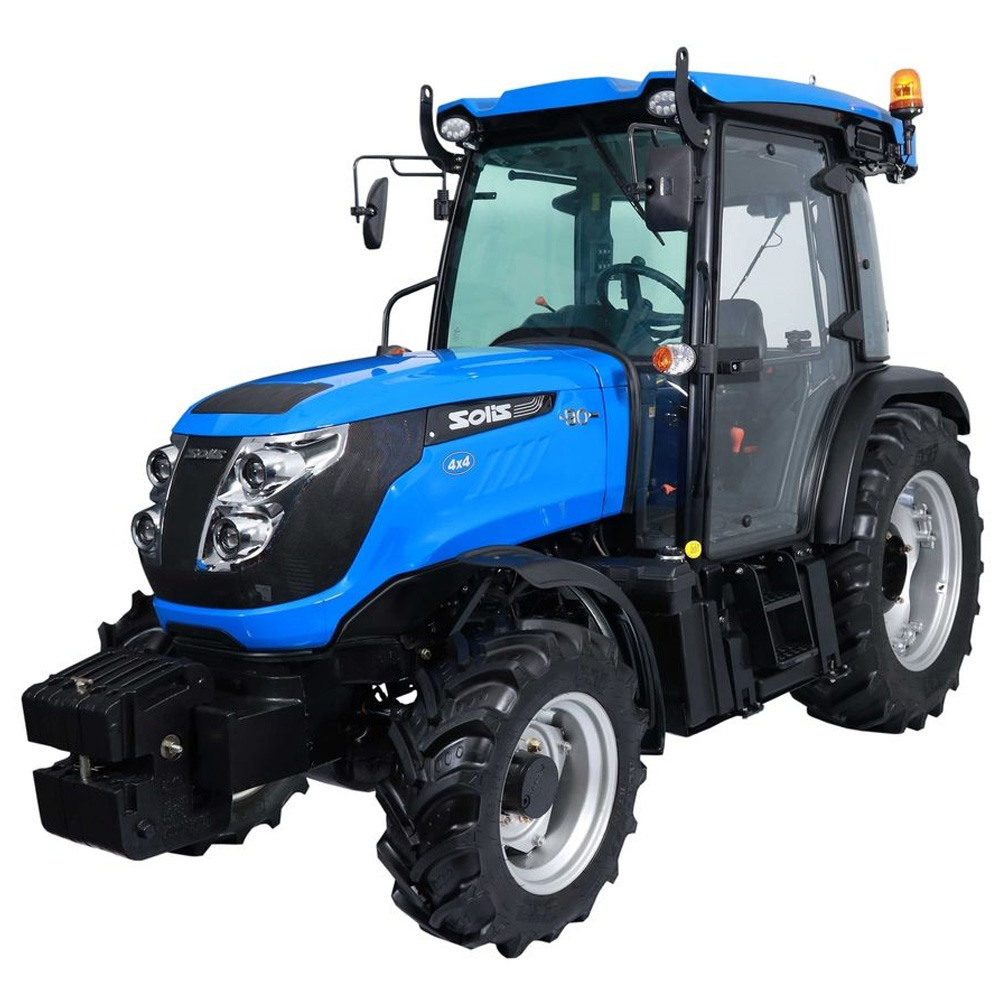

Solis Solis 90
Solis Solis 90 — Utility tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
6085 to 7004 pounds
Hover a source tag to verify
Overview
ManufacturerSolis (a part of Sonalika)Reference
Utility tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Mechanical wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Engine
Sonalika 4.1L 4-cyl dieselReference
Engine67.1 kWReference
SonalikaReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke105 x 118 mmReference
Power67.1 kWReference
Air cleanerdryReference
Rated RPM2000Reference
Torque360.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.9 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
Oil capacity35.0 LReference
Capacities
Fuel78.0 LReference
PTO & Hydraulics
Hydraulic system35.0 LReference
Capacity35.0 LReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase234 cmReference
Weight6085 to 7004 poundsReference
Front tire9x16Reference
2WD Rear tire18.4x30Reference
2WD Standard tires (ag)Front: 9x16. Rear: 18.4x30Reference
4WD Standard tires (ag)Front: 12.4x24. Rear: 18.4x30Reference
Length416 cmReference
Width198 cmReference
Height (ROPS)254 cmReference
2WD Weight2760 kgReference
4WD Weight3177 kgReference
Clearance (rear axle)41 cmReference
2WD Front tread139 to 174 cmReference
4WD Front tread152 to 194 cmReference
Rear tread144 to 184 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging volts12Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
