Tractor · 1960Unverified

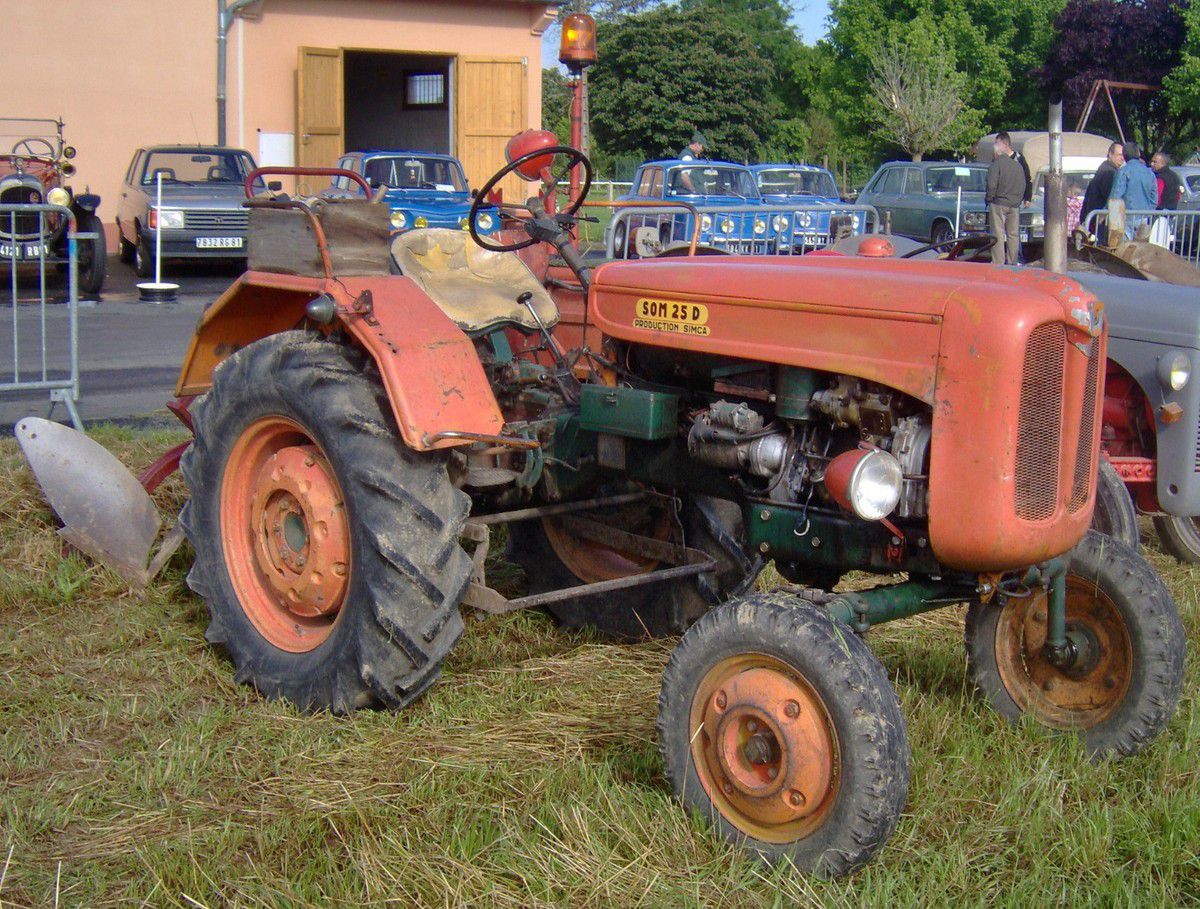

SOMECA Som 25
SOMECA Som 25 — Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1149 kg
Hover a source tag to verify
Overview
ManufacturerSOMECAReference
Utility tractorReference
Built in Saint-Denis, FranceReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Open operator station.Reference
Engine
FIAT 1.1L 2-cyl dieselReference
Engine18.6 kWReference
FIAT 614.010Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke85 x 100 mmReference
Power18.6 kWReference
Compression21.5:1Reference
Rated RPM2300Reference
Torque63.3 NmReference
Torque RPM1800Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase169 cmReference
Weight1149 kgReference
Front tire4.50-16Reference
Rear tire10-24Reference
Ag front4.50-16Reference
Ag rear10-24Reference
Ag front4.00-15Reference
Ag rear9-24Reference
Length258 cmReference
Width135 cmReference
Height (hood)119 cmReference
Ground clearance50 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
