Tractor · Unverified

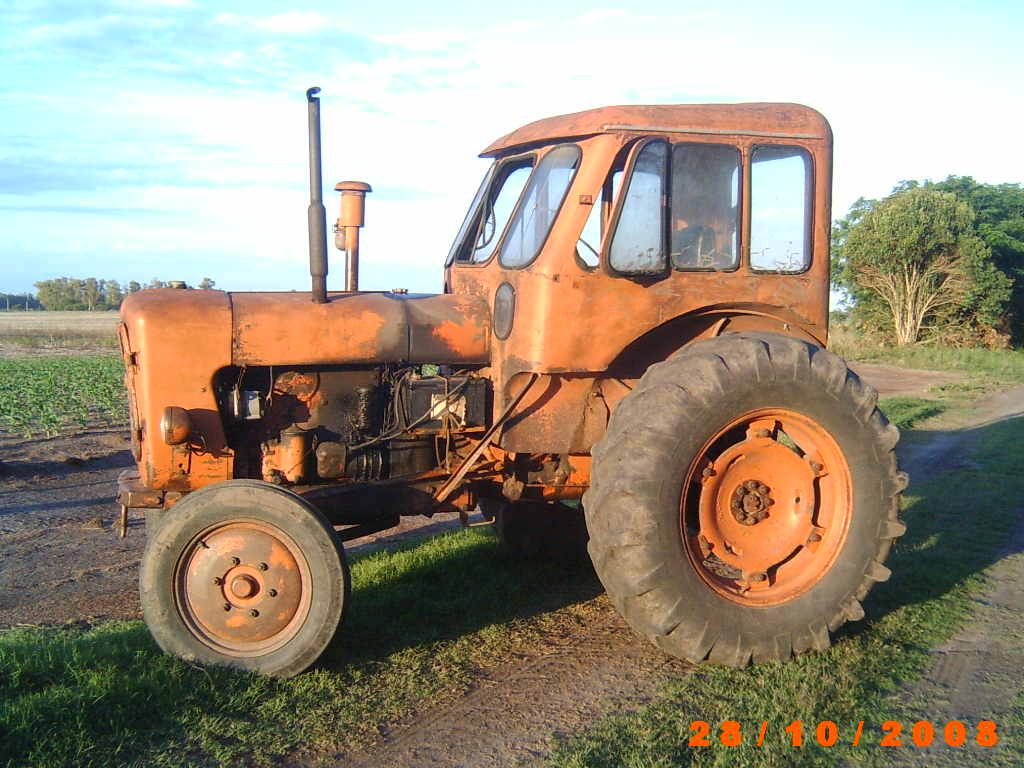

SOMECA Som 45
SOMECA Som 45 — Standard-tread tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Max power
29.2 kW
Weight
2415 kg
Hover a source tag to verify
Overview
ManufacturerSOMECAReference
Standard-tread tractorReference
Built in Saint-Denis, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
OM Milano 3.8L 4-cyl dieselReference
Fuel tank56.0 LReference
Drawbar (claimed)21.6 kWReference
Belt (claimed)26.8 kWReference
Drawbar (tested)29.2 kWReference
Belt (tested)30.1 kWReference
OM Milano COID/45Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.8 LReference
Bore/Stroke105 x 120 mmReference
Compression15.5:1Reference
Rated RPM1600Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity21.0 LReference
Belt power (max)30.1 kWReference
Max power29.2 kWReference
Transmission
7-speed gearReference
TypegearReference
Gears7 forward and 2 reverseReference
Dimensions
Weight2415 kgReference
Front tire6.00-19Reference
Rear tire14-30Reference
Ag front6.00-19Reference
Ag rear14-30Reference
Ag rear14-28Reference
Ag rear11-36Reference
Test results
Diesel 7-speed 2WDJune 14 - 19, 1957Link: Nebraska Tractor Test 625 fileReference
Belt fuel use (max)9.8 l/hourReference
Drawbar performanceReference
Max pull2834 kgReference
Gear 1 used for pull test.Reference
Speeds
With 14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
