Tractor · 1917Unverified

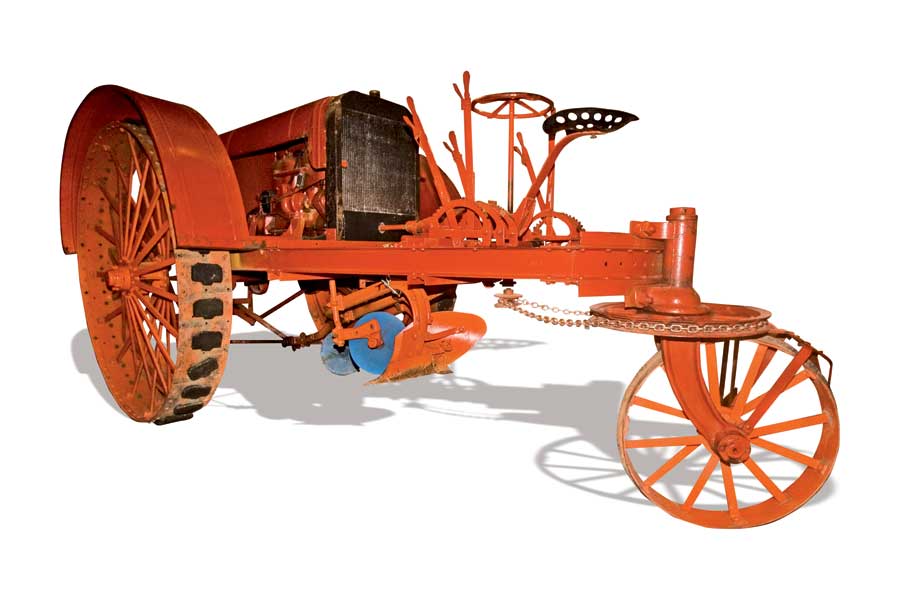

Square Turn 18-35
Square Turn 18-35 · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
3538 kg
Hover a source tag to verify
Overview
ManufacturerSquare TurnReference
Built in Norfolk, Nebraska, USAReference
Original price was $1,875 in 1918Reference
Drive3x2 2WDReference
Final drivesbull gearReference
Differential steeringReference
Open operator station.Reference
Engine
Climax 8.4L 4-cyl gasolineReference
Fuel tank113.6 LReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)26.1 kWReference
Plows3Reference
Climax KReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement8.4 LReference
Bore/Stroke127 x 165 mmReference
Rated RPM850Reference
Transmission
friction discReference
Typefriction discReference
Gearsinfinite forward and reverseReference
Dimensions
Weight3538 kgReference
Front tire61x12Reference
Ag front61x12 (steel)Reference
Length505 cmReference
Width248 cmReference
Height205 cmReference
Capacities
Diameter30 cmReference
Width25 cmReference
RPM850Reference
Speed560.22 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
